Korean Type Turnbuckle with Eye and Eye
[Search Related Products]

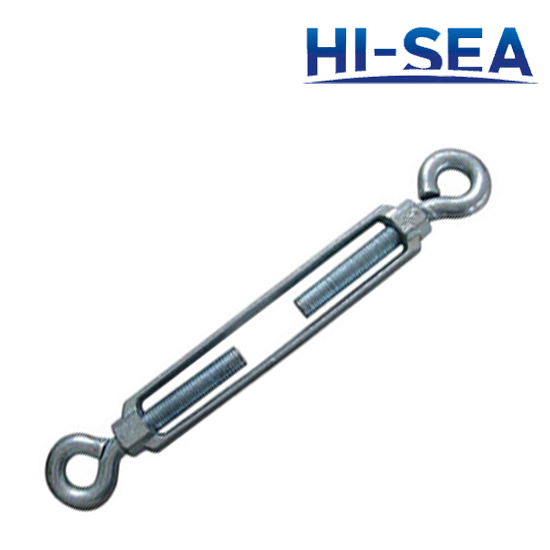

Korean Type Turnbuckle with Eye and Eye
Korean type of turnbuckle was produced strictly according to international standards and national standard of this technology. And the strength of the inspected sample must equal to the steel wire rope. So, the connection parts would not release or break. Besides that our turnbuckles have complete specifications, enough stock and competitive price.
Product details:
1. Item: Korean type turnbuckle with eye and eye
2. Standard: Korean type
3. Material: carbon steel, alloy steel
4. Type: eye & eye
5. Surface: galvanized, self color
6. Usage: chain and wire rope accessories
7. Technology: drop forged
8. Size: 3/16Ħħ-3/4Ħħ
9. Special specification and marks can be made according to customers requirement
Specification:
SIZE(In) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
WEIGHT (100pcs/kg) |
3/16' |
57.4 |
41.2 |
41.5 |
18.4 |
15 |
36 |
54.6 |
30 |
5/16' |
90 |
70 |
8 |
11 |
22 |
65 |
95 |
145 |
3/8' |
160 |
130 |
9 |
17 |
30 |
85 |
130 |
345 |
1/2' |
190 |
155 |
10 |
20 |
30 |
95 |
150 |
560 |
1/2'(L) |
255 |
215 |
10 |
30 |
35 |
140 |
190 |
790 |
5/8' |
250 |
200 |
15 |
25 |
45 |
130 |
190 |
1120 |
5/8'(L) |
350 |
300 |
15 |
30 |
45 |
180 |
240 |
1540 |
3/4' |
250 |
200 |
20 |
35 |
45 |
140 |
210 |
1670 |
3/4'(L) |
300 |
245 |
20 |
40 |
55 |
170 |
240 |
2050 |

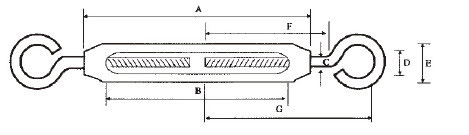

Sketch of the Korean type turnbuckle
Korean typr turnbuckle
