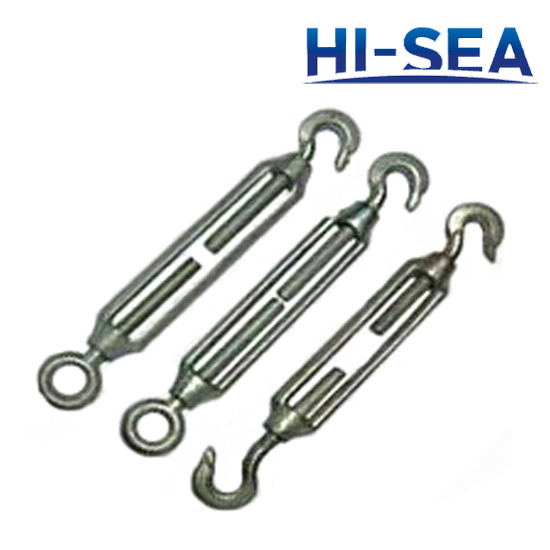

European Type Galvanized Carbon Steel Turnbuckle
European type galvanized carbon steel turnbuckle is made by high quality carbon steel with advanced international production process. And all the samples chosen from the finished products have past the international standard.So you can absolutely believe in the quality of products.
Product details:
1. Item: European type galvanized carbon steel turnbuckle
2. Standard: European type
3. Material: carbon steel
4. Type: hook&hook, eye &hook, eye&eye
5. Technology: forged
6. Surface: hot dipped galv, electro galv
7. Size: M6-M20
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement
Specification:
Size |
D(mm) |
L1(mm) |
L2(mm) |
L3(mm) |
L4(mm) |
WT(g) |
M6 |
9 |
240 |
156 |
108 |
85 |
95 |
M8 |
10 |
250 |
180 |
115 |
77 |
155 |
M10 |
14 |
300 |
220 |
120 |
85 |
275 |
M12 |
16 |
320 |
240 |
125 |
90 |
420 |
M14 |
18 |
350 |
265 |
140 |
93 |
550 |
M16 |
22 |
396 |
280 |
170 |
116 |
1000 |
M20 |
24 |
462 |
330 |
200 |
132 |
1600 |

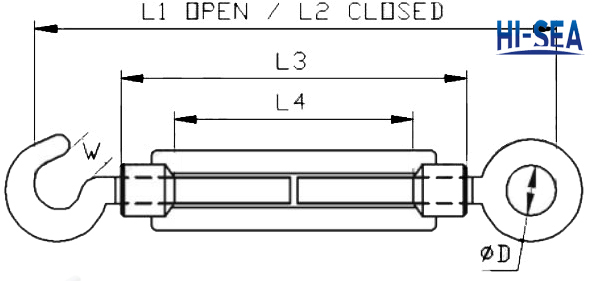

Sketch of the European type galvanized carbon steel turnbuckle
