Standard DIN 1480 Turnbuckle with Hook and Hook

[Search Related Products]

Standard DIN 1480 Turnbuckle with Hook and Hook

DIN 1480 Turnbuckle with Hook and Hook:

This product is made by high quality C15 steel with drop forged process. It can resists pitting and corrosion by most chemical, and is particular resistant to saltwater corrosion. And its hook and hook type can be used in the occasion of been removed often. So, it can be widely used in large construction site, large factory, shipping and bridge constraction because of its special performance and appearance.

product details:

1. Model NO.:DIN 1480

2. Material:C15

3. Type:Hook & Hook

4. Usage:Marine Industry

5. Installation:External

6. Condition:New

7. Surface:Electric Galvanized

8. Technology:Drop Forged

9. Size:M5-M25

10. Export Markets:Global

11. Packing:Carton with Pallet

12. Standard:ISO, CE, SGS

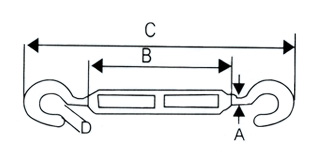

Specification:

A

B

C

D

WLL

WT

(mm)

(mm)

(mm)

(mm)

(T)

(Kg)

M5

70

130

9

0.1

0.08

M6

100

160

9

0.25

0.11

M8

125

200

10

0.35

0.21

M10

150

245

11

0.5

0.34

M12

200

300

14

1

0.65

M16

250

400

18

1.5

1.3

M20

300

480

20

2.3

2.5

M10

325

520

22

3.2

3.93

M25

350

560

26

4.5

5.89

Standard DIN 1480 Turnbuckle with Hook and Hook

DIN1480 Turnbuckle with Hook and Hook
