Anchor Light

Anchor Light:

Applied to the ships as for navigation lamp signal or use for anchor and take the ground as lamp signal.It¡¯s behavior is in agreement with THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.Conform to the standard GB/T3028-1995.The product approved by CCS.

Products characteristic:

1.The shell is made of good quality steel, lampshade adopts good quality glass.

2.The shell structure has fine seal performance, and it is convenient to install and remove.

Specification:

Type

Lamp holder

Bulb

Level arc

Visibility

Color

Protection class

Material

Weight

CXH8-1

E27

220V/40W

110V/40W

360¡ã

3n.m

Transparent

IP55

Steel

1.7kg

CXH8-2

B15d

24V/15W

24V/30W

360¡ã

2n.m

Aluminum

0.75kg

Anchor Light

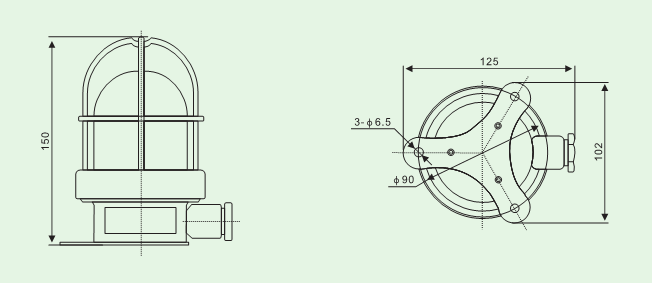

CXH8-1 Drawing

Anchor Light

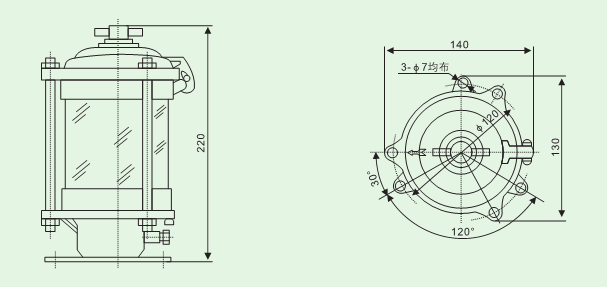

CXH8-2 Drawing
