Double-deck Stern Light

Double-deck Stern Light:

Double-deck Stern Light is a kind of stern light,which has the features that corrosion resistance and shock resistance,and some of them has automatic aleak holes in the bottom,convenient to install and replace the bulb.Applied to ships with the length above 12m,conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Specification:

Type	Bulb	Level arc	Visibility	Color	Protection class	Lamp holder	Weight
CXH6-10B	24V 60W 110V 60W 220V 65W	135°	3n.m	Transparent Yellow	IP55	B22d	9.0kg
CXH4-10B₁	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	135°	3n.m		IP56	P28S	4.2kg
CXH6-20C₁	24V 30W	135°	2n.m		IP55	B15d	3.2kg
CXH4-101P	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	135°	3n.m		IP56	P28S	4.17kg
CXH4-101PL	220V 2*30W	135°	3n.m		IP56	E27	4.0kg

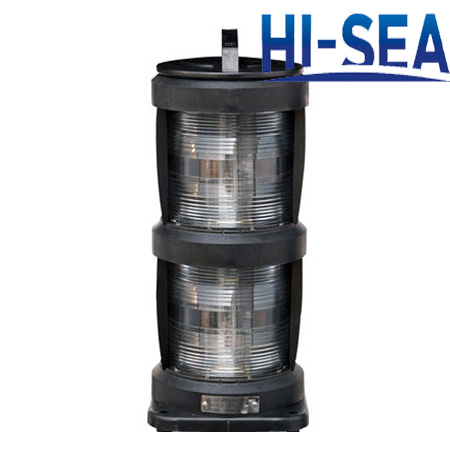

Double-deck Stern Light

CXH4-101P

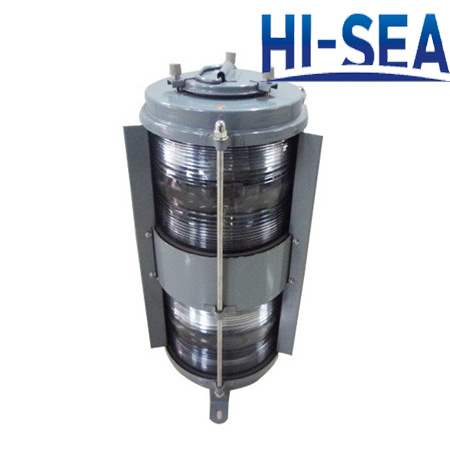

Double-deck Stern Light

CXH4-10B
