Plastic Single-deck Starboard Light
[Search Related Products]
Plastic Single-deck Starboard Light:
Plastic Single-deck starboard Light is a kind of starboard light which produced by plastic and made into single-deck,applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995 and international standard IEC60598-1-2008.Approved by CCS and ZY of China Fishery Inspection.Also some of them passed the authentication of CE and GL.
Products characteristic:
1.The shell is made of high-strength engineering plastic PA+GF injection,the lampshade sdopts injection of PC,the lens hood adopts the good quality stainless steel.
2.The starboard light have the whole seal structure,it's waterproof under the bad environment.
3.The connection of the light's lamp holder and the base adopt plug-in type,can replace the up and down bulb when open the cover.
4.The signal lights can work normally under the temperature -30¡ãC~50¡ãC.
Specification:
Type |
Bulb |
Level arc |
Visibility |
Color |
Protection class |
Lamp holder
|
Weight
|
CXH1-3P |
12V 25W 40cd 24V 25W 60cd |
112.5¡ã |
1n.m |
Green |
IP56 |
BAY15d |
0.53kg |
CXH1-11P |
24V 60W 60cd 110V 60W 60cd 220V 65W 60cd |
112.5¡ã |
3n.m |
Green |
IP56 |
P28S |
3.2kg |
CXH1-11PL |
20V 30W |
112.5¡ã |
3n.m |
Green |
IP56 |
E27 |
3.2kg |
CXH1-21P |
12V 25W 40cd 24V 25W 60cd |
112.5¡ã |
2n.m |
Green |
IP56 |
BAY15d |
1.2kg |

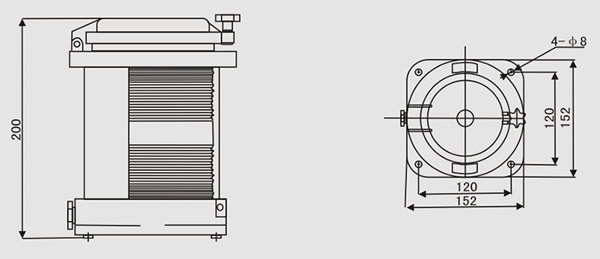

CXH1-21P Drawing
