Single-deck Stern Light

Single-deck Stern Light:

Single-deck stern light is one kind of stern light,it can be produced by different materials like plastic, stainless steel, steel and so on.Always applied to ships with the length above 12m as lamp signal liaison when night navigation,conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Specification:

Type	Bulb	Level arc	Visibility	Color	Protection class	Lamp holder	Weight
CXH4-1D	24V 60W 110V 60W 220V 65W	135°	3n.m	Transparent Yellow	IP55	B22d	4.9kg
CXH4-1D₁	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	135°	3n.m		IP56	P28S	2.0kg
CXH4-2C	24V 30W	135°	2n.m		IP55	B15d	1.8kg
CXH4-2C₁	24V 30W	135°	2n.m		IP56	B15d	1.3kg
CXH4-3	12V 25W 24V 25W	135°	2n.m		IP55	B15d	0.85kg
CXH4-3P	12V 25W 40cd 24V 25W 60cd	135°	2n.m		IP56	BAY15d	0.53kg
CXH4-11P	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	135°	3n.m		IP56	P28S	3.2kg
CXH4-11PL	20V 30W	135°	3n.m		IP56	E27	3.2kg
CXH4-21P	12V 25W 40cd 24V 25W 60cd	135°	2n.m		IP56	BAY15d	1.2kg

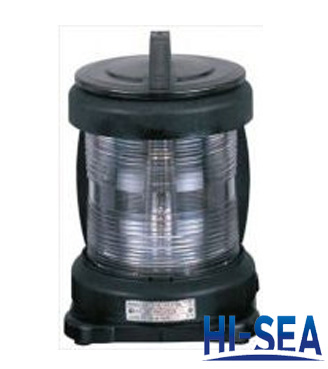

Single-deck Stern Light

CXH4-11P

Single-deck Stern Light

CXH4-2C
