Single-deck All-round Light
[Search Related Products]
Single-deck All-round Light:
Single-deck All-round Light is one kind of navigation signal light,it can be produced by plastic, stainless steel, steel or other materials.it's a kind of fixtures that can make an unbroken light in the 360 กใ arc of the horizon.Applied to different types of ships,conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.
Specification:
Type |
Bulb |
Level arc |
Visibility |
Color |
Protection class |
Lamp holder |
Weight |
CXH6-1D |
24V 60W 110V 60W 220V 65W |
360กใ |
3n.m |
Transparent Red Green |
IP55 |
B22d |
4.9kg |
CXH6-1D1 |
24V 60W 60cd 110V 60W 60cd 220V 65W 60cd |
360กใ |
3n.m |
IP56 |
P28S |
2.0kg |
|
CXH6-2C |
24V 30W |
360กใ |
2n.m |
IP55 |
B15d |
1.8kg |
|
CXH6-2C1 |
24V 30W |
360กใ |
2n.m |
IP56 |
B15d |
1.3kg |
|
CXH6-3 |
12V 25W 24V 25W |
360กใ |
2n.m |
IP55 |
B15d |
0.85kg |
|
CXH6-3P |
12V 25W 40cd 24V 25W 60cd |
360กใ |
2n.m |
IP56 |
BAY15d |
0.53kg |
|
CXH6-11P |
24V 60W 60cd 110V 60W 60cd 220V 65W 60cd |
360กใ |
3n.m |
IP56 |
P28S |
3.2kg |
|
CXH6-11PL |
20V 30W |
360กใ |
3n.m |
IP56 |
E27 |
3.2kg |
|
CXH6-21P |
12V 25W 40cd 24V 25W 60cd |
360กใ |
2n.m |
IP56 |
BAY15d |
1.2kg |

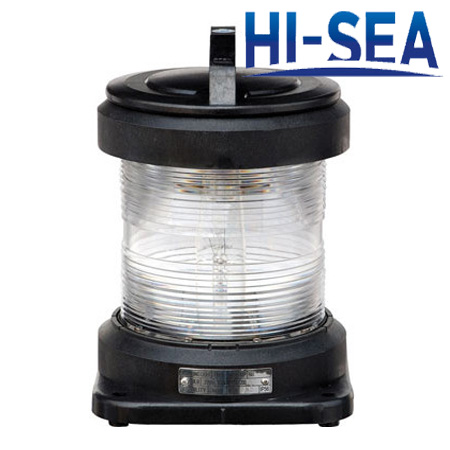

CXH6-11P

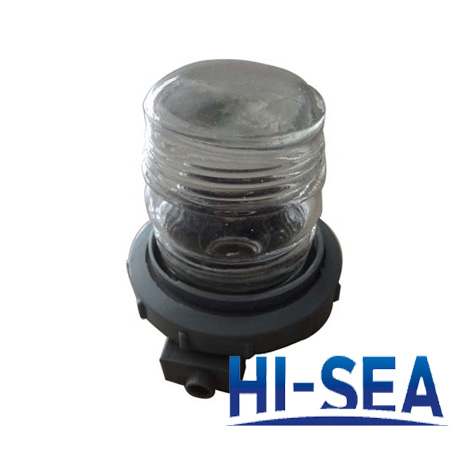

CXH6-3

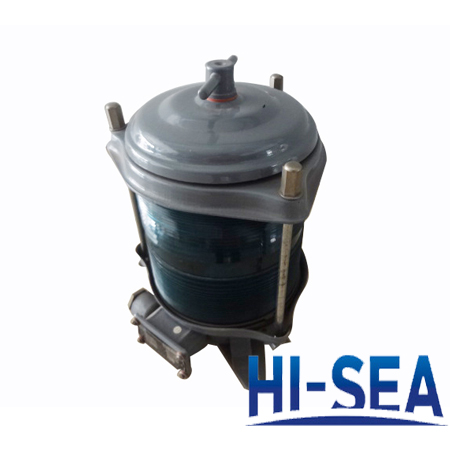

CXH6-1D
