Plastic Single-deck Port Light

Plastic Single-deck Port Light:

Plastic Single-deck Port Light is a kind of port light which produced by plastic,applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995 and international standard IEC60598-1-2008.Approved by CCS and ZY of China Fishery Inspection.Also some of them passed the authentication of CE and GL.

Products characteristic:

1.The shell is made of high-strength engineering plastic PA+GF injection,the lampshade sdopts injection of PC,the lens hood adopts the good quality stainless steel.

2.The port light have the whole seal structure,it's waterproof under the bad environment.

3.The connection of the port light's lamp holder and the base adopt plug-in type,can replace the up and down bulb when open the cover.

4.The port lights can work normally under the temperature -30°C~50°C.

Specification:

Type	Bulb	Level arc	Visibility	Color	Protection class	Lamp holder	Weight
CXH2-3P	12V 25W 40cd 24V 25W 60cd	112.5°	1n.m	Red	IP56	BAY15d	0.53kg
CXH2-11P	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	112.5°	3n.m	Red	IP56	P28S	3.2kg
CXH2-11PL	20V 30W	112.5°	3n.m	Red	IP56	E27	3.2kg
CXH2-21P	12V 25W 40cd 24V 25W 60cd	112.5°	2n.m	Red	IP56	BAY15d	1.2kg

Plastic Single-deck Port Light

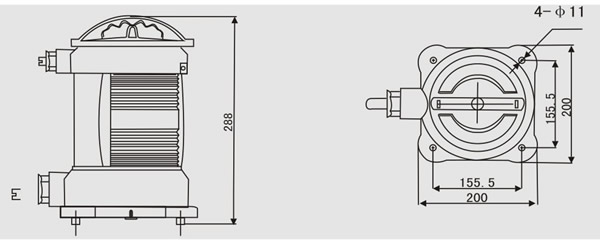

CXH2-11P Drawing
