Plastic Double-deck Starboard Light

[Search Related Products]

Plastic Double-deck Starboard Light

Plastic Double-deck Starboard Light:

Plastic double-deck starboard Light is a kind of starboard light which produced by plastic has the feature of waterproof and made into double-deck.It applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995 and international standard IEC60598-1-2008.Approved by CCS and ZY of China Fishery Inspection.Also some of them passed the authentication of CE and GL.

Products characteristic:

1.The shell is made of high-strength engineering plastic PA+GF injection,the lampshade sdopts injection of PC,the lens hood adopts the good quality stainless steel.

2.The double-deck port light have the whole seal structure,it's waterproof under the bad environment.

3.The connection of the port light's lamp holder and the base adopt plug-in type,can replace the up and down bulb when open the cover.

4.The double-deck port lights can work normally under the temperature -30¡ãC~50¡ãC.

Specification:

Type

Bulb

Level arc

Visibility

Color

Protection class

Lamp holder


Weight


CXH1-101P

24V 2*60W 60cd

110V 2*60W 60cd

220V 2*65W 60cd

112.5¡ã

3n.m

Green

IP56

P28S

4.15kg

CXH1-101PL

20V 2*30W

112.5¡ã

3n.m

Green

IP56

E27

4.15kg

Plastic Double-deck Starboard Light

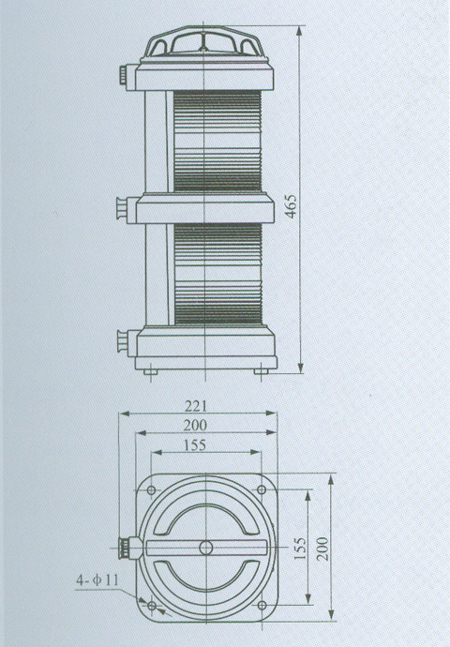

CXH1-101P Drawing
