Plastic Double-deck Port Light

Plastic Double-deck Port Light:

Plastic double-deck Port Light is a kind of port light which produced by plastic has the feature of waterproof and made into double-deck.It applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995 and international standard IEC60598-1-2008.Approved by CCS and ZY of China Fishery Inspection.Also some of them passed the authentication of CE and GL.

Products characteristic:

1.The shell is made of high-strength engineering plastic PA+GF injection,the lampshade sdopts injection of PC,the lens hood adopts the good quality stainless steel.

2.The double-deck port light have the whole seal structure,it's waterproof under the bad environment.

3.The connection of the port light's lamp holder and the base adopt plug-in type,can replace the up and down bulb when open the cover.

4.The double-deck port lights can work normally under the temperature -30°C~50°C.

Specification:

Type	Bulb	Level arc	Visibility	Color	Protection class	Lamp holder	Weight
CXH2-101P	24V 2*60W 60cd 110V 2*60W 60cd 220V 2*65W 60cd	112.5°	3n.m	Red	IP56	P28S	4.15kg
CXH2-101PL	20V 2*30W	112.5°	3n.m	Red	IP56	E27	4.15kg

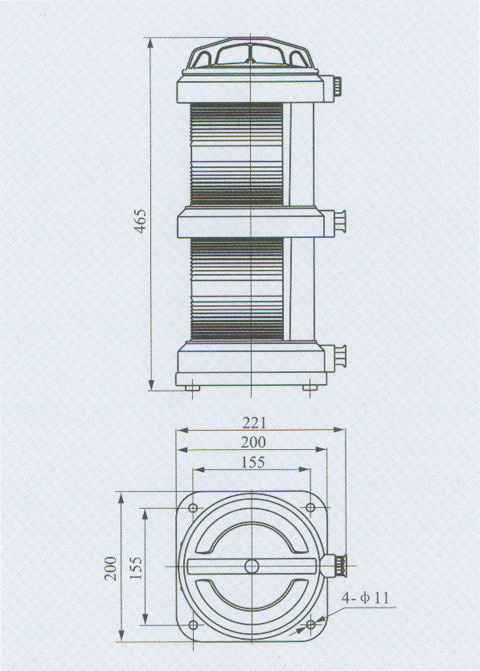

CXH2-101P Drawing
