Threshold Light

Threshold Light:

Applied to the vessel that load helicopter and well drilling platform, it is for the helicopter fises and landing safety under the condition of nighttime and low visibility, with lamp signal and illumination function. Approved by CCS(China Classification Society), conform to the standard GJB534A-98.

Main technical parameter

1.visibility:1.5n.m

2.Horizontal/vertical optical angle: 10°/30°

3.Voltage/Power:220V/30W

4.Protection class:IP56

5.Color of illuminate:red, green, yellow, blue, white

6.Weight:7.2kg

7.Certificate:CCS

Products characteristic:

1.The shell is made of good quality stainless steel,lampshade adopts injection of PC.

2.The shell adopts the seal structure,and has the strong ability of waterproof.

3.Equipped the special ship signal bulb.

4.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.

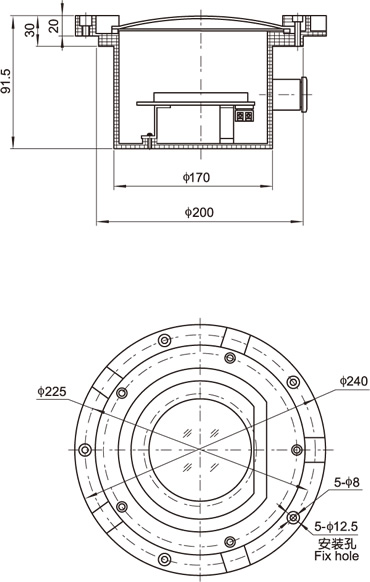

Threshold Light Drawing
