Single-deck Steel Starboard Light

[Search Related Products]

Single-deck Steel Starboard Light

Single-deck Steel Starboard Light:

Single-deck steel starboard Light is a kind of port light which produced bstarboard steel and made in to single-deck,which has the feature of corrosion-resisting and shock resistance.Applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Products characteristic:

1.It's convenient to install and replace the bulb,and there are automatic aleak holes in the bottom.

2.The shell adopts good quality metal material steel,the surface is painted the special mold-power,has the feature of corrosion-resisting and shock resistance.

3.The lampshade adopts polycarbonate,it has the feature of ultraviolet radiation resistance and does not discolor etc.

Specification:

Type

Bulb

Level arc

Visibility

Color

Protection class

Lamp holder

Weight

CXH1-1D

24V 60W

110V 65W

220V 65W

112.5กใ

3n.m

Green

IP55

B22d

4.9kg

CXH1-2C

24V 30W

112.5กใ

2n.m

Green

IP55

B15d

1.8kg

Single-deck Steel Starboard Light

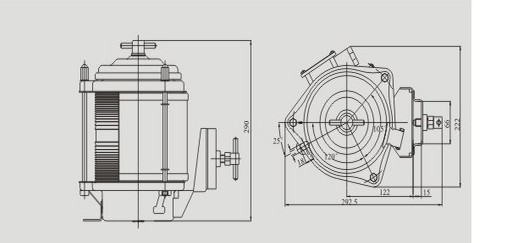

CXH1-1D Drawing
