Single-deck Stainless Steel Port Light

Single-deck Stainless Steel Port Light:

Single-deck stainless steel Port Light is a kind of port light which produced by stainless steel and made in to single-deck,applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Products characteristic:

1.The shell adopts good quality stainless steel.The surface is painted the special mold-power,has the feature of corrosion resisting and shock resistance.

2.The port lights have the whole seal structure,it's waterproof under the bad environment.

3.The lampshade adopts PC material,chroma stable and ultraviolet radiation resistance and does not discolor.

Specification:

Type

Bulb

Level arc

Visibility

Color

Protection class

Lamp holder

Weight

CXH2-1D₁

24V 60W 60cd

110V 60W 60cd

220V 65W 60cd

112.5°

3n.m

Red

IP56

P28S

2.2kg

CXH2-2C₁

24V 30W

112.5°

2n.m

Red

IP56

B15d

1.5kg

Single-deck Stainless Steel Port Light

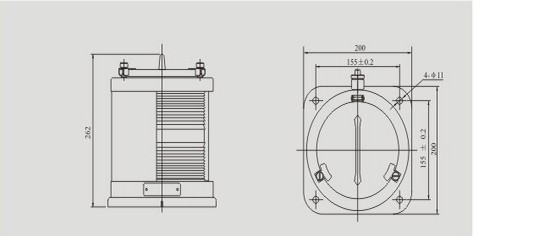

CXH2-1D₁Drawing
