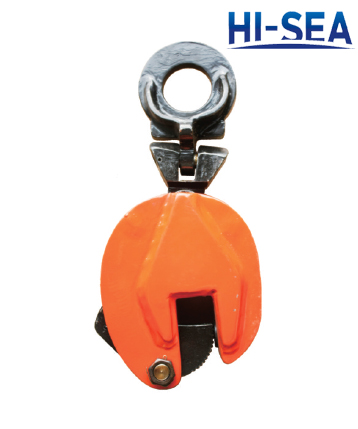

CD Vertical Lifting Clamp

[Search Related Products]

CD Vertical Lifting Clamp

CD Vertical Lifting Clamp

1. Using for lifting steel plate vertically
2. Made of low carbon alloy of high quality
3. Single clamp or two clamps must work together in operation
4. Only one steel plate is allowed to be lifting at one time and lifing of multi-layered steel plate is forbidden, the lifted objects can not be collided in operation process
5. The locking handle must be pulled up to tighten the spring and the locking handle is pulled down when unloading, the clamp and the plate can only be separated when the spring is loosened
6. The proof load is 2 times the weight of the working load limit
7. No overloading
8. Please read the product specification carefully before using it
9. Quality assurance, experienced staffs, professional service, competitive price, etc.
10. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.

WLL/pair

Opening

Weight

t

mm

kg

0.8

0-15

2

1.6

0-20

7

2

0-25

8

3.2

0-25

15

5

0-30

21

8

0-45

34

CD Vertical Lifting Clamp

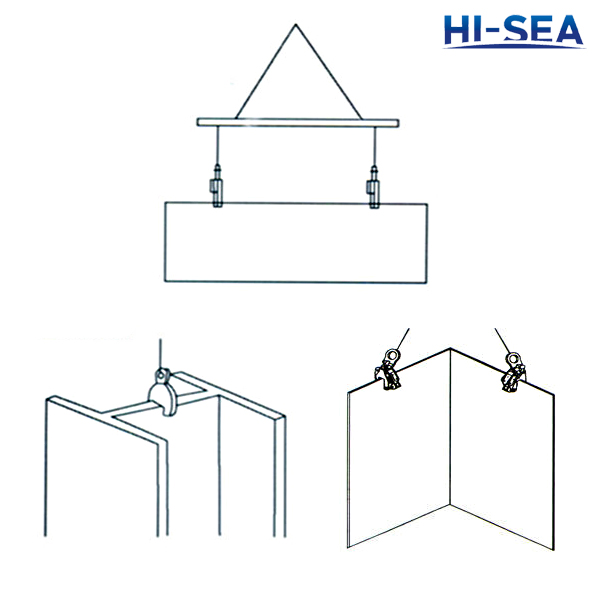

Usage of CD Vertical Lifting Clamp

CD Vertical Lifting Clamp

CD Vertical Lifting Clamp
