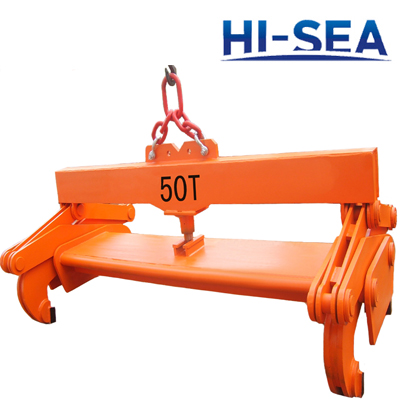

Steel Slab Lifting Tong
Steel slab lifting tong adopts the lever principle and can clamp the billet stably and safely without auxiliary of external force. The opening and closing device is manufactured form high strength alloy steel, which make it has high wear resistance and long service life. This kind of tong can be devided into fixed type and adjustable type to adapt to the lifting of different billet.
Product Details£º
1. Model: Steel slab lifting tong
2. Material: Low carbon alloy steel
3. Usage:Lifting hoist equipment
4. Weight: 350kg-4800kg
5. Capacity: 3-20ton
6. Forbidden to use overload
7. Certificates: ISO, CE, SGS,etc.
8. Packaging: Carton then on steel pallet
9. Special specification and marks can be made according to order quantity
Specification£º
Capacity |
Range of Billet Width |
Min.Thickness of Billet |
Max.dimension |
Weight |
|
ton |
mm |
mm |
W |
H |
kg |
3 |
100-300 |
60 |
1200 |
1600 |
350 |
5 |
100-300 |
70 |
1200 |
1800 |
500 |
5 |
170-50 |
80 |
1300 |
1800 |
600 |
5 |
450-600 |
100 |
1200 |
1800 |
600 |
5 |
650-1000 |
140 |
1500 |
2300 |
850 |
8 |
150-450 |
90 |
2000 |
2400 |
1300 |
8 |
450-600 |
110 |
1600 |
2500 |
1300 |
8 |
450-750 |
130 |
1600 |
2200 |
1350 |
10 |
450-900 |
140 |
1900 |
2600 |
2200 |
10 |
650-1000 |
150 |
1600 |
2600 |
1800 |
10 |
700-1100 |
160 |
1700 |
2600 |
1900 |
12 |
450-750 |
120 |
1800 |
2400 |
2600 |
12 |
235-800 |
150 |
2300 |
3000 |
2700 |
16 |
450-750 |
120 |
2000 |
2700 |
3600 |
16 |
450-900 |
140 |
2100 |
3000 |
3800 |
16 |
650-1000 |
150 |
2000 |
2700 |
3800 |
16 |
600-1100 |
190 |
2400 |
3100 |
4200 |
16 |
850-1250 |
160 |
2000 |
3000 |
4200 |
20 |
700-1100 |
150 |
2200 |
3200 |
4600 |
20 |
800-1300 |
170 |
2200 |
3400 |
4800 |
20 |
950-1400 |
160 |
2500 |
3500 |
4800 |
