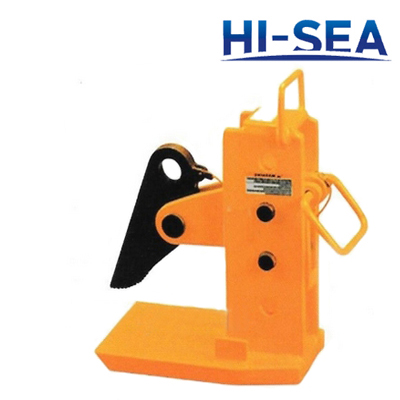

PDK Multi Steel Plate Lifting Clamp
[Search Related Products]PDK Multi Steel Plate Lifting Clamp
1. Using for lifting multi-layered piece of steel plate horizontally
2. The working load limit refers to the maximum weight when clamp are allowed to use in pairs and the angle of suspending point is 60 degree
3. Four clamps must work together in operation and balance beam also must be used, the place of clamp tongue can be adjusted according to the thickness of lifted steel plates
4. The lifted objects can not be collided in operation process
5. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
6. Please read the product specification carefully before using it
7. Quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.
WLL/pair |
Steel plate |
A |
B |
C |
D |
E |
F |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
3 |
20-160 |
110 |
210 |
25 |
26 |
140 |
380 |
20 |
5 |
40-240 |
130 |
240 |
30 |
30 |
158 |
450 |
29 |
8 |
40-240 |
180 |
300 |
60 |
40 |
200 |
520 |
50 |
15 |
40-240 |
180 |
300 |
75 |
50 |
235 |
530 |
72 |
Usage of PDK lifting clamp
PDK Multi Steel Plate Lifting Clamp
