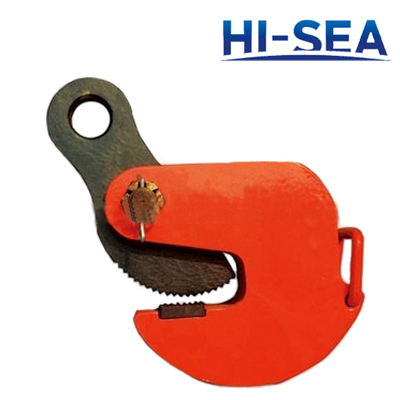

Overturn Lifting Clamp
[Search Related Products]
Overturn Clamp
1. Using for lifting steel plates level and steel plate or steel for overturn
2. Lifted objects can not be collided in the process of operation
3. The maximum weight of single overturn clamp is working load limit, the lifting operation can use single one
4. You must add balance beam when lifting in horizontal
5. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of working load limit
6. Pakaged with bags, standard export carton or by customer requirements
7. Quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.
Specification:
WLL/pair |
Steel Plate |
A |
B |
C |
D |
E |
F |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
1.5 |
0-20 |
80 |
43 |
153 |
30 |
80 |
205 |
5.2 |
2.5 |
0-30 |
105 |
52 |
190 |
35 |
90 |
270 |
8.7 |
5 |
10-40 |
136 |
82 |
247 |
46 |
114 |
380 |
25 |
10 |
20-50 |
160 |
85 |
300 |
60 |
129 |
410 |
35 |
Usage of overturn clamp
