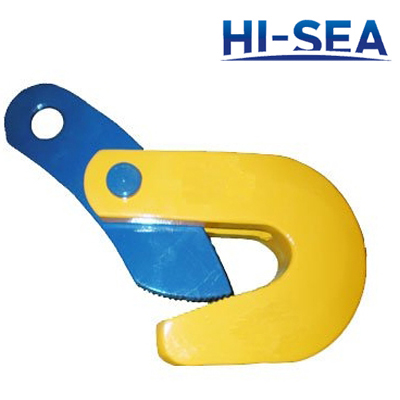

L Type Lifting Clamp
[Search Related Products]L Type Lifting Clamp
1. Using for lifting steel plate horizontally
2. Made of low carbon alloy of high quality
3. The lifted objects can not be collided in operation process
4. The working load limit refers to the maximum weight when clamp are allowed to use in pairs and the angle of suspending point is 60 degree
5. Four clamps must work together in operation and balance beam also must be used
6. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
7. Please read the product specification carefully before using it
8. Quality assurance, experienced staffs, professional service, competitive price, etc.
9. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.
WLL/pair |
Steel plate |
Weigth |
t |
mm |
kg |
0.75 |
0-15 |
1.6 |
1.5 |
0-25 |
6.2 |
2.5 |
25-50 |
10 |
5 |
50-80 |
18 |

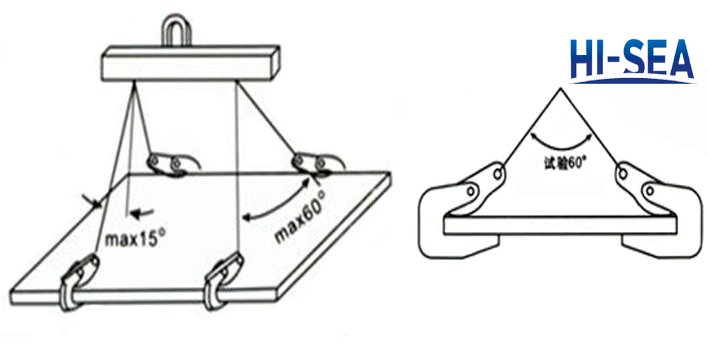

Usage of L type lifting clamp
L Type Lifting Clamp
