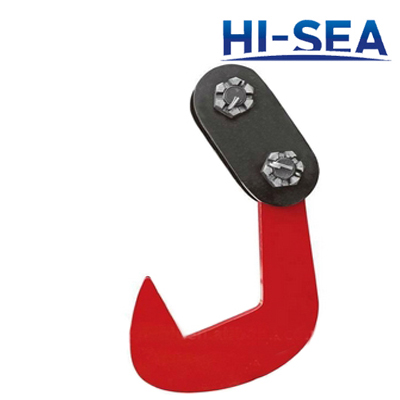

Single Steel Plate Lifting Clamp
[Search Related Products]Single Steel Plate Lifting Clamp
1. Using for lifting steel plates of one or some
2. Made of low carbon alloy of high quality
3. The working load limit refers to the maximum weight when clamp are allowed to use in pairs and the angle of suspending point is 60 degree
4. Four clamps must work together in operation and balance beam also must be used
5. The lifted objects can not be collided in operation process
6. Automatically disconnected
7. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
8. Please read the product specification carefully before using it
9. Quality assurance, experienced staffs, professional service, competitive price, etc.
10. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.
WLL/pair |
Steel plate |
A |
B |
C |
D |
E |
F |
G |
R |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
3 |
30-90 |
102 |
90 |
68 |
78 |
84 |
168 |
25 |
9 |
12 |
5 |
40-100 |
108 |
100 |
73 |
88 |
97 |
172 |
30 |
11 |
15 |
8 |
80-140 |
110 |
127.5 |
80 |
110 |
124 |
240 |
30 |
15 |
21.2 |
10 |
90-150 |
122 |
155 |
85 |
120 |
141 |
260 |
35 |
15 |
27 |
Sketch of the single steel plate lifting clamp
Single Steel Plate Lifting Clamp
