H Type Horizontal Lifting Clamp
[Search Related Products]
H Steel Clamp
1. Using for lifting I-steel or H-steel horizontally
2. Made of low carbon alloy of high quality

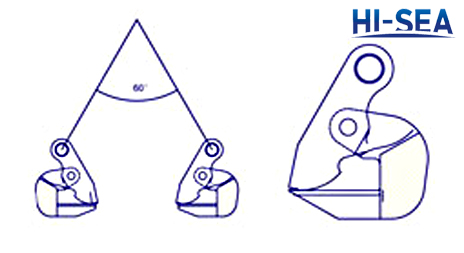

3. The working load limit refers to the maximum weight when clamp are allowed to use in pairs and the angle of suspending point is 60 degree
4. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
5. Please read the product specification carefully before using it
6. Quality assurance, experienced staffs, professional service, competitive price, etc.
7. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.
WLL/pair |
Steel plate thickness |
t |
mm |
2 |
0-20 |
3 |
0-30 |
5 |
0-40 |
