Horizontal Lifting Clamp
[Search Related Products]Horizontal Lifting Clamp
1. Using for lifting steel plate levely
2. WLL refers to the hanging clamp when used in pairs to allow lifting of the maximum load
3. Please add balance beam when the steel plate is more longer
4. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
5. Please carefully read the product specification before using it
6. Pakaged with bags, standard export carton or by customer requirements
7. Quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.

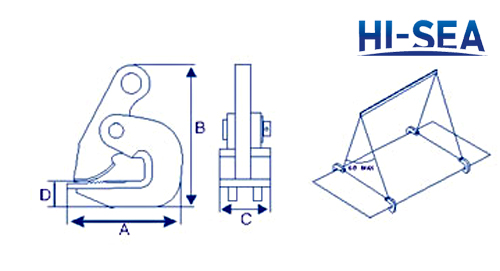

Specification:
WLL/Pair |
Steel plate |
A |
B |
C |
D |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
kg |
2 |
0-20 |
127 |
156 |
56 |
29 |
2.12 |
3 |
0-30 |
152 |
190 |
64 |
31 |
3.4 |
5 |
20-60 |
220 |
293 |
70 |
54 |
8.5 |
8 |
50-100 |
277 |
375 |
86 |
56 |
16.2 |
10 |
60-125 |
296 |
421 |
86 |
66 |
20.2 |
