Lifting Clamp

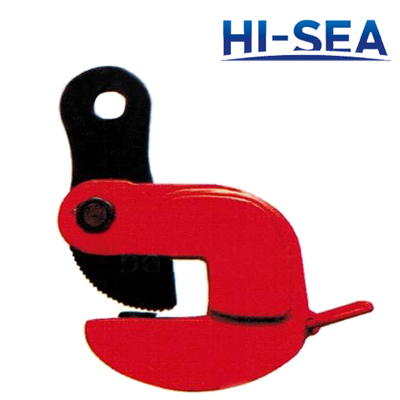

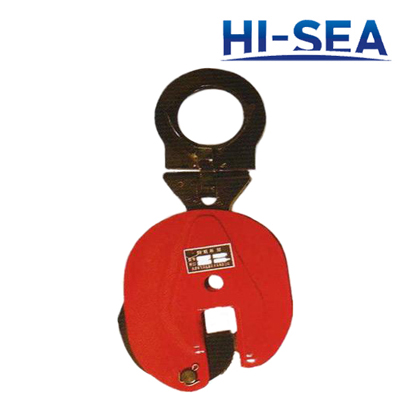

According to the hoisting method, lifting clamp can be devided into horizontal lifting clamp, vertical lifting clamp and overturn clamp. During the lifting operation, open the lifting calmp mouth first, firmly hold the object, then lift. And the lifting clamp can be removed on the condition of no load. The vertical lifting clamp is equipped with self-locking device, which make it safe and reliable. And it has advantages of easy operation, high efficiency and easy maintenance.
Safety notices:
1. Choose the correspond clamp according to needs
2. Working on the allowable load, no overload;
3. Don¡¯t knock or impact the lifting clamp and the object;
4. Don¡¯t move or stop suddenly during lifting;
5. It is best to use two or more clamps for safety;
6. Inspect the clamp carefully before use.
Specification:
WLL/Pair |
Steel plate |
A |
B |
C |
D |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
kg |
2 |
0-20 |
127 |
156 |
56 |
29 |
2.12 |
3 |
0-30 |
152 |
190 |
64 |
31 |
3.4 |
5 |
20-60 |
220 |
293 |
70 |
54 |
8.5 |
8 |
50-100 |
277 |
375 |
86 |
56 |
16.2 |
10 |
60-125 |
296 |
421 |
86 |
66 |
20.2 |
Specification:
WLL/pair |
Steel plate |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Openning |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
1 |
0-16 |
59 |
12 |
16 |
45 |
32 |
122 |
73 |
277.5 |
155 |
50 |
3.7 |
2 |
0-22 |
61 |
16 |
23 |
55 |
45 |
165 |
88 |
340 |
190 |
55 |
6.3 |
3 |
5-30 |
72 |
16 |
28 |
60 |
55 |
195 |
110 |
374 |
227 |
70 |
10.5 |
5 |
16-50 |
82 |
20 |
33 |
70 |
70 |
250 |
135 |
458 |
275 |
90 |
19.3 |
8 |
40-80 |
100 |
25 |
40 |
80 |
91 |
345 |
175 |
610 |
370 |
130 |
40 |
12 |
50-90 |
107 |
28 |
45 |
90 |
105 |
430 |
182 |
635 |
380 |
150 |
55 |
16 |
60-100 |
107 |
41 |
50 |
100 |
115 |
455 |
200 |
650 |
410 |
160 |
63 |
Specification:
WLL/pair |
Steel Plate |
A |
B |
C |
D |
E |
F |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
1.5 |
0-20 |
80 |
43 |
153 |
30 |
80 |
205 |
5.2 |
2.5 |
0-30 |
105 |
52 |
190 |
35 |
90 |
270 |
8.7 |
5 |
10-40 |
136 |
82 |
247 |
46 |
114 |
380 |
25 |
10 |
20-50 |
160 |
85 |
300 |
60 |
129 |
410 |
35 |
