Vertical Lifting Clamp
1. Using for lifting steel vertical
2. Only a single hoisting operation or using of two complementary, only a single vertical clamp lifting weight is the largest rated load
3. lifting must be locking up the handle so that the spring tension, unloading when the locking handle down, relax spring, and clamp plate can be separated
4. The first four vertical lifting clamps' proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
5. The last three vertical lifting clamps' proof load is 1.5 times the weight of the working load limit, the breaking load is 3 times the weight of the working load limit
6. Pakaged with bags, standard export carton or by customer requirements
7. Quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.

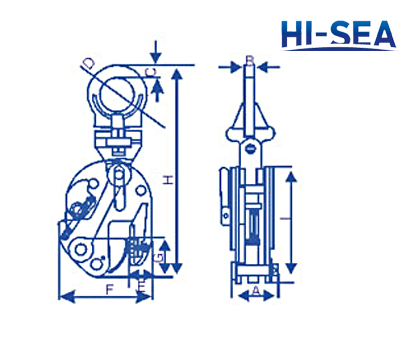

Specification:
WLL/pair |
Steel plate |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Openning |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
1 |
0-16 |
59 |
12 |
16 |
45 |
32 |
122 |
73 |
277.5 |
155 |
50 |
3.7 |
2 |
0-22 |
61 |
16 |
23 |
55 |
45 |
165 |
88 |
340 |
190 |
55 |
6.3 |
3 |
5-30 |
72 |
16 |
28 |
60 |
55 |
195 |
110 |
374 |
227 |
70 |
10.5 |
5 |
16-50 |
82 |
20 |
33 |
70 |
70 |
250 |
135 |
458 |
275 |
90 |
19.3 |
8 |
40-80 |
100 |
25 |
40 |
80 |
91 |
345 |
175 |
610 |
370 |
130 |
40 |
12 |
50-90 |
107 |
28 |
45 |
90 |
105 |
430 |
182 |
635 |
380 |
150 |
55 |
16 |
60-100 |
107 |
41 |
50 |
100 |
115 |
455 |
200 |
650 |
410 |
160 |
63 |
