Double Steel Plate Lifting Clamp
[Search Related Products]Double Steel Plate Lifting Clamp
1. Using for lifting steel plates of one or some
2. The working load limit refers to the maximum weight when clamp are allowed to use in pairs and the angle of suspending point is 60 degree
3. Four clamps must work together in operation and balance beam also must be used
4. The lifted objects can not be collided in operation process
5. Automatically disconnected
6. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of the working load limit
7. Please read the product specification carefully before using it
8. Quality assurance, experienced staffs, professional service, competitive price, etc.
9. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.
WLL/pair |
Steel plate |
A |
B |
C |
D |
E |
F |
G |
R |
Weight |
t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
4 |
40-100 |
72 |
102 |
70 |
74 |
82 |
179 |
60 |
10 |
7 |
6 |
40-120 |
91 |
129 |
89 |
100 |
107 |
263 |
73 |
12 |
14 |
10 |
120-210 |
134 |
213 |
133 |
130 |
148 |
357 |
90 |
15 |
32 |

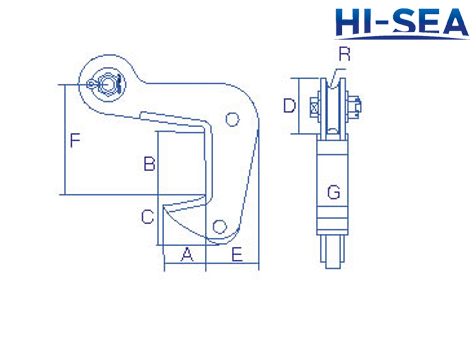

Sketch of the double steel plate lifting clamp
Usage of double steel plate lifting clamp
