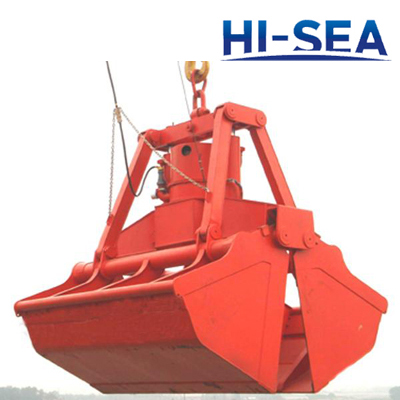

Electric hydraulic clamshell grab
Electric hydraulic clamshell grab has hydraulic power and control system itself, and the most parts of hydraulic system are imported from European and USA. When cylinder pressure up to rated value, the pump flow will be zero and the pressure will be reduced automatically.
Product Details:
1.Suitable for all kinds of lifting applicances;
2.Imported hydraulic components;
3. High efficiency and flexibility
4. Low operation height;
5. Variable displacement pump;
6. Powerful digging force;
7 Simple structure, easy to operation, and stable in working under any circumstances;
8. Handling of powder and fine bulk materials such as chemicals, fertilizer, grain, coal, coke, iron ore, sand, particle construction materials and smashed rocks etc.
Application
Widely used in ports, steel plants, power stations, ships and garbage treatment plants, and is used together with tower cranes, ship cranes, ship unloaders, traveling cranes and other type of cranes.
Hi-sea provides
1. Designs to customer specification, including volume and unladen weight
2. Fast spare-parts delivery across the world
3. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity |
Volume |
Weight |
A |
B |
C |
D |
E |
T |
m³ |
T |
mm |
mm |
mm |
mm |
mm |
8 |
1.5-3 |
3.5 |
2242 |
3020 |
2975 |
2605 |
1872 |
14 |
3-6 |
5.5 |
2520 |
3153 |
3019 |
2897 |
2516 |
16 |
4-8 |
6.5 |
2800 |
3350 |
3488 |
3160 |
2965 |
20 |
5-10 |
7 |
2850 |
3700 |
3620 |
3200 |
3050 |
25 |
6-12 |
10 |
3540 |
4327 |
3990 |
3413 |
3600 |
28 |
8-15 |
11 |
3540 |
4027 |
3785 |
3325 |
3400 |
32 |
10-18 |
13 |
3400 |
4360 |
4500 |
3900 |
3950 |
40 |
12-22 |
17 |
3849 |
4471 |
4604 |
4320 |
4500 |

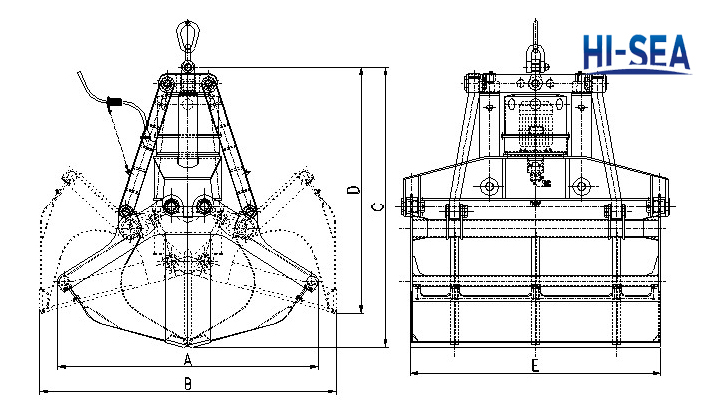

Sketch of the electric hydraulic clamshell grab
