Pull Open Grab

Pull Open Grab

Pull open grab is a single rope grab. when the grab need to open, you should pull the steel towing string, then the grab can be open in the air. It has buffering cylinder, which can reduce impact when it opens. The steel towing string can open grab in any angle within 180 degrees, and the steel towing string will not touch grab steel ropes.

Product Details:

1. Simple mechanical structure

2. The opening and closing action can be accurately completed under various states.
3. Easy operation

4. Low empty weight.
5. Low cost of maintenance.
Specification:

Capacity(T)

Volume(m³)

Dead Weight(T)

Wire Rope Did.(mm)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

10

3-5

5

24

2652

3602

3255

3747

2310

15

4-8

7

28

3448

4487

3954

4727

2200

20

5-12

8

32

3500

4434

4043

4842

2650

25

6-12

11

36.5

3815

5143

4618

5346

2750

Pull Open Grab

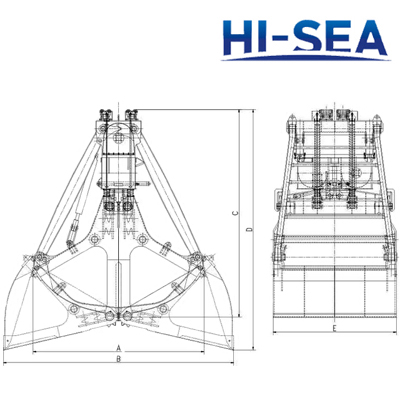

Sketch of the pull open grab
