Remote Control Grab
The grab is capable of handling any type of bulk good such as sand, gravel, or coal, and also refuse, scrap, and agricultural commodities, and widely used in ship, port, railway station, factory, mine and other transport departments. The electric and hydraulic system is water proof design, which can prevent the grab from wave and rain washing.
Product Details:
1. Close automatically on the materials and open at any position without external power
2. 100 m distance remote control from the grab
3. Main components of hydraulic system imported from Europe, so multistep buffering open style to keep longer service life
4. Designs to customer specification, including volume and unladen weight;
5. Assembly and commissioning by SHYP's specialist technicians;
6. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity(T) |
Volume(m³) |
Weight(T) |
Wire Rope Dia.(mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
10 |
3-6 |
4.5 |
24 |
2600 |
3338 |
3756 |
4071 |
2700 |
14 |
4-7 |
6 |
28 |
2780 |
3398 |
4092 |
4448 |
2800 |
16 |
4-8 |
7 |
28 |
2780 |
3398 |
4092 |
4448 |
3000 |
20 |
5-10 |
8 |
32 |
2810 |
3591 |
4192 |
4513 |
3560 |
25 |
6-12 |
10 |
36 |
3000 |
3837 |
4487 |
4850 |
4100 |
28 |
8-16 |
10.5 |
36 |
3060 |
3887 |
4559 |
4881 |
4320 |
35 |
10-20 |
14 |
40 |
3270 |
4109 |
5008 |
5391 |
4600 |
40 |
12-24 |
17 |
45 |
3520 |
4374 |
5136 |
5495 |
4700 |
50 |
15-30 |
21 |
52 |
4000 |
4873 |
5850 |
6072 |
4900 |

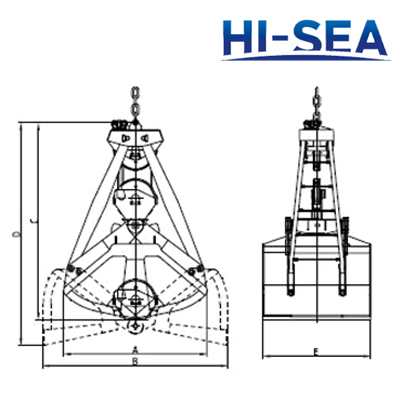

Sketch of the remote control grab
