Marine Grab
Marine Hydraulic Grab Bucket
[Search Related Products]

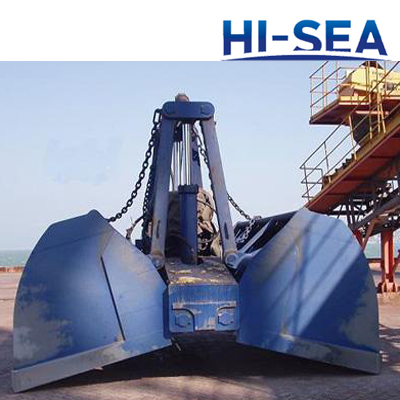

Marine Hydraulic Grab Bucket
Marine hydraulic grab bucket has hydraulic power and control system itself, and most parts of hydraulic system are imported from European and USA. This grab has Used 3D virtual design to make the weight allocation more reasonable, and has longer service life. Capacity and type can be designed according to our customers required.
Product Details:
1..Long Service Life Hydraulic Grab bucket
2. High tensile steel used throughout.
3. High pressure cylinders.
4. Main components of hydraulic system imported from Europe
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. cceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity |
Volume |
Weight |
Motor Power(kw) |
Oil Pressure |
|
T |
m³ |
T |
380V 50HZ |
440V 60HZ |
Kg/cm² |
8 |
1.5-3 |
3.5 |
18.5 |
21 |
200 |
14 |
3-6 |
5.5 |
22 |
26 |
200 |
16 |
4-8 |
6.5 |
30 |
35 |
200 |
20 |
5-10 |
7 |
30 |
35 |
200 |
25 |
6-12 |
10 |
45 |
52 |
200 |
28 |
8-15 |
11 |
45 |
52 |
200 |
32 |
10-18 |
13 |
45 |
52 |
200 |
40 |
12-22 |
17 |
55 |
63 |
200 |
Marine Hydraulic Grab Bucket
