Marine Single Rope Dual Scoop Grab

Marine Single Rope Dual Scoop Grab

Marine single rope dual scoop grab can be opened by pulling the steel towing string, then the grab can open in the air. It has buffering cylinder, which can reduce impact when it opens. The steel towing string can open grab in any angle within 180กใ, and the steel towing string will not touch grab steel ropes.

Product Details:

1. Rated capacity: 10-25 ton

2. Grab volume: 3-14 m³

3. Dead weight: 4.5-10.5 ton

4. Simple mechanical structure

5. Works for the crane with one hoisting drum

Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity Volume Dead Weight Wire Rope Dia. A B C D E
T T mm mm mm mm mm mm
10 3-6 4.5 21.5 2300 3448 3260 3543 2200
16 4-8 6.5 28 3228 4169 3655 4412 2650
20 5-10 8.5 32 3310 4356 4306 4955 2650
25 7-14 10.5 36 3580 4792 4409 5107 3300

Marine Single Rope Dual Scoop Grab

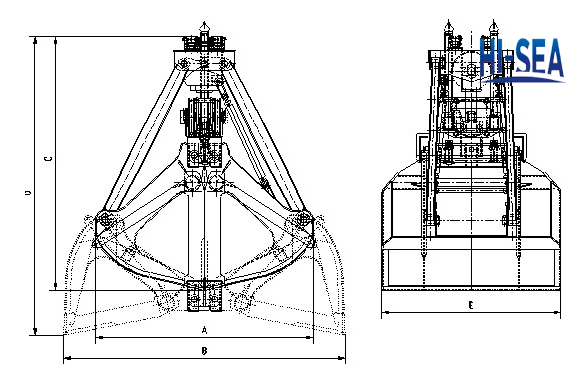

Sketch of the marine single rope dual scoop grab

Marine Single Rope Dual Scoop Grab

Marine Single Rope Dual Scoop Grab
