Marine Grab
Electric Hydraulic Marine Grab
[Search Related Products]

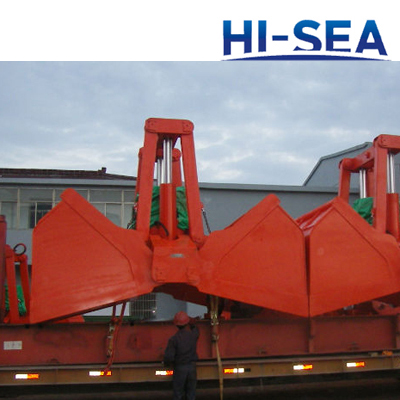

Electric Hydraulic Marine Grab
Electric hydraulic marine grab are widely used in bulk carriers and ports. It has stability system, great digging force and highest working efficiency. Compared with other type grab, it has advantages of big grab force and easy clearance. Espacially for sticky stuff, the grab effect of it is particularly prominent.
Product Details:
1. Rated capacity: 8-40 ton
2. Volume: 1.5-22 m³
3. Dead weight: 3.5-17 ton
4. Imported hydraulic components
5. High efficiency and flexibility
6. Powerful digging force
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specifiction:
Rated Capacity |
Volume |
Weight |
Motor Power(kw) |
Oil Pressure |
|
T |
m³ |
T |
380V 50HZ |
440V 60HZ |
Kg/cm² |
8 |
1.5-3 |
3.5 |
18.5 |
21 |
200 |
14 |
3-6 |
5.5 |
22 |
26 |
200 |
16 |
4-8 |
6.5 |
30 |
35 |
200 |
20 |
5-10 |
7 |
30 |
35 |
200 |
25 |
6-12 |
10 |
45 |
52 |
200 |
28 |
8-15 |
11 |
45 |
52 |
200 |
32 |
10-18 |
13 |
45 |
52 |
200 |
40 |
12-22 |
17 |
55 |
63 |
200 |
