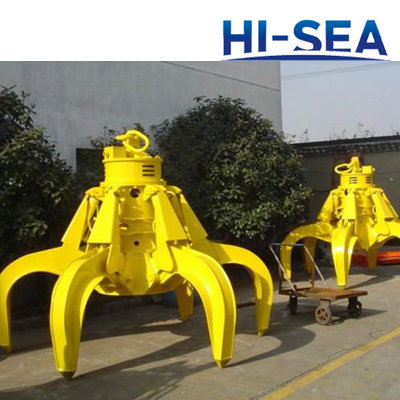

Marine Motor Hydraulic Orange Peel Grab
Marine motor hydraulic orange peel grab is widely used in ports,steel plants and garbage treatment plants,with tower cranes,ship unloaders,travling cranes and other type of cranes. It has the advantages of simple structure and good perform of rope grab and also the high productivity of the powered grab.
Product Details:
1. Rated Capacity: 5-40 ton
2. Volume: 1-8 m³
3. Dead weight: 2.15-11.5 ton
4. Long Service Life Hydraulic Grab bucket
5. High tensile steel used throughout. Wear resistant steel used on all spade tips.
6. Main components of hydraulic system imported from Europe
Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Rated Capacity |
Volume |
Dead Weight |
Power Supply(KW) |
Open and Close Time |
|
T |
m³ |
T |
380V 50HZ |
440V 60HZ |
S |
5 |
1 |
2.15 |
15 |
18.5 |
17 |
8 |
1.5 |
3.4 |
18.5 |
21 |
20 |
10 |
2 |
4.3 |
22 |
26 |
16 |
16 |
3.2 |
5.7 |
37 |
43 |
18 |
20 |
4 |
7.2 |
37 |
43 |
25 |
25 |
5 |
9.2 |
45 |
52 |
22 |
30 |
6.5 |
10.2 |
45 |
52 |
25 |
40 |
8 |
11.5 |
52 |
55 |
25 |
