Touch Open Grab
Touch Open Grab is a single grab. When the Grab need to open, it must be put on the ground, cargo or hopper first, then lift crane again, the grab will open. It has buffering cylinder, which can reduce impact to crane when it opens. The opening and closing syetem is simple, so it has low fault rate.
Product Details:
1. Simple mechanical structure
2. Works for the crane with one hoisting drum
3. Easy operation
4. Designs to customer specification, including volume and unladen weight;
5. Assembly and commissioning by SHYP's specialist technicians;
6. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.
Specification:
Capacity(T) |
Volume(m³) |
Dead Weight(T) |
Wire Rope Did.(mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
5 |
0.75 |
2 |
15.5 |
1800 |
2477 |
2713 |
3147 |
1100 |
10 |
2.5 |
4 |
19.5 |
2460 |
3326 |
3740 |
4210 |
1866 |
16 |
4 |
6 |
28 |
2543 |
3410 |
3737 |
4212 |
2220 |
25 |
6 |
8.3 |
32 |
2800 |
3717 |
4358 |
4794 |
2400 |
30 |
7.1 |
11 |
38 |
2800 |
3719 |
4585 |
4983 |
2800 |
34 |
9 |
12 |
38 |
3000 |
4200 |
5187 |
5587 |
2920 |
40 |
10.4 |
14 |
40 |
3290 |
4677 |
5367 |
5824 |
3100 |
52 |
12.8 |
20 |
46 |
3500 |
4891 |
5865 |
6420 |
3200 |
70 |
16.8 |
28 |
52 |
4120 |
5752 |
6852 |
7621 |
3400 |
100 |
26 |
35 |
52 |
4870 |
6041 |
7076 |
8008 |
4100 |

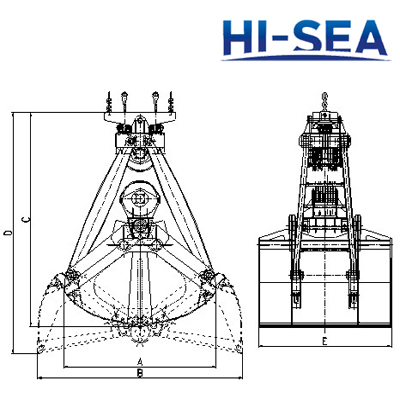

Sketch of the touch open grab
