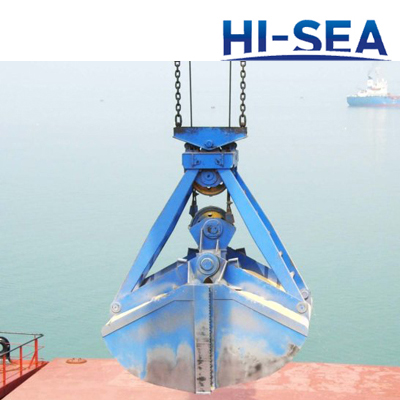

Four Ropes Clamshell Grab

Four Ropes Clamshell Grab

Four ropes clamshell grab is a kind of efficient tool that can load and unload sand, coal, mineral power, cement, fertilizer and other bulk cargo in various harsh environment. It has simple structure, low failure rate, convenient operation, and can accurately complete opening and closing action under various states. This grab has Used 3D virtual design to make theweight allocation more reasonable, and has longer service life.

Product Details:

1. Rated capacity: 3-100 ton

2. Volume: 0.6-66m³

3. Simple mechanical structure

4. Low failure rate, convenient operation

5. Accurately complete opening and closing action under various states.

6. Designs to customer specification, including volume and unladen weight

7. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Volume

Dead Weight

Wire Rope Dia.

A

B

C

D

E

T

mm

mm

mm

mm

mm

mm

0.5

2

15.5

1600

2144

2496

2809

1100

0.75

2

15.5

1800

2477

2713

3147

1100

1.1

1.4

15.5

1800

2338

2596

2957

1050

1.5

2

15.5

1800

2482

2659

3138

1400

1.5

2

15.5

1800

2842

2659

3138

1400

2

2

17.5

2000

2659

2706

3041

1500

2.5

2.2

17.5

2200

2750

2683

3062

1500

3

2.2

15.5

2300

3141

3134

3556

1650

Four Ropes Clamshell Grab

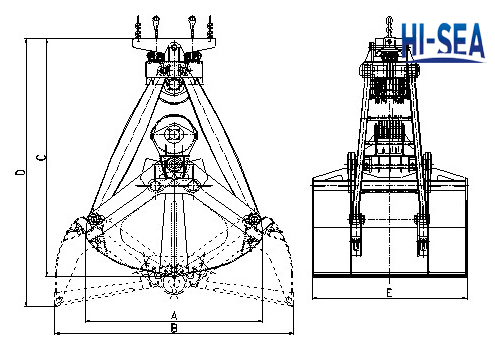

Sketch of the four ropes clamshell grab

Four Ropes Clamshell Grab

Four Ropes Clamshell Grab
