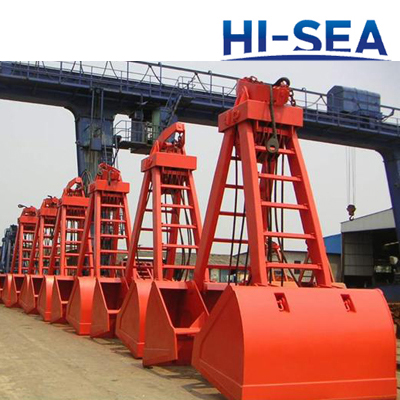

Four Ropes Mechanical Marine Grab

Four Ropes Mechanical Marine Grab

Four ropes mechanical marine grab is a kind of effctive tool to deal with sand, coal, mineral power, cement, chemical fertilizer and other bulk materials in harsh environment. It widely used in ship, port, railway station, factory, mine and other transport departments. It has simple structure, low failure rate, convenient operation, can accurately complete opening and closing action under various states.

Product Details:

1. Rated capacity: 3-100 ton

2. Grab volume: 0.6-66 m³

3. Dead weight: 1.5-40 ton

4. Maximum capacity.

5. Low empty weight.

6. Using 3D Virtual Design to secure outward appearance

Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Volume

Dead Weight

Wire Rope Dia.

A

B

C

D

E

T

mm

mm

mm

mm

mm

mm

0.5

2

15.5

1600

2144

2496

2809

1100

0.75

2

15.5

1800

2477

2713

3147

1100

1.1

1.4

15.5

1800

2338

2596

2957

1050

1.5

2

15.5

1800

2482

2659

3138

1400

1.5

2

15.5

1800

2842

2659

3138

1400

2

2

17.5

2000

2659

2706

3041

1500

2.5

2.2

17.5

2200

2750

2683

3062

1500

3

2.2

15.5

2300

3141

3134

3556

1650


Four Ropes Mechanical Marine Grab

Sketch of the four ropes mechanical marine grab

Four Ropes Mechanical Marine Grab

Four Ropes Mechanical Marine Grab
