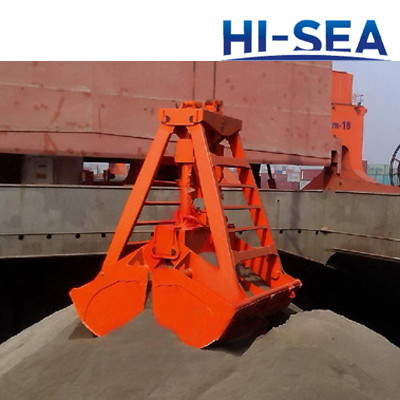

Marine Grab
Material Handling Clamshell Grab
[Search Related Products]
Application:
It is one kind of grab bucket,it is widely used in power plants,goods yeard,workshop,wharf to grab loose
material, rubbish, scrap iron,etc.
Technical features:
1.Strong box type,welding by machine hand
2.Wheels are vacuum casting by our Group,top quality control
3.Wheels,wirerope drum,gears, couplings are processed by our CNC manchine center, TOP quality control
4.Heavy duty slipring motor,TOP quality in China
After sales service:
1.Warranty: the quality of our cranes is guaranteed for one year ,in this period
if any quality problem happens with correct operation , we will send spare parts to our customer free charge
2.After warranty ,we will supply spare parts at cost prices to our customer
Specification:
Rated Capacity |
Volume |
Dead Weight |
Wire Rope Dia. |
T |
m³ |
T |
mm |
10 |
3-6 |
4.5 |
24 |
14 |
4-7 |
6 |
28 |
16 |
4-8 |
7 |
28 |
20 |
5-10 |
8 |
32 |
25 |
6-12 |
10 |
36 |
28 |
8-16 |
10.5 |
36 |
35 |
10-20 |
14 |
40 |
40 |
12-24 |
17 |
45 |
50 |
15-30 |
21 |
52 |
Material Handling Clamshell Grab
