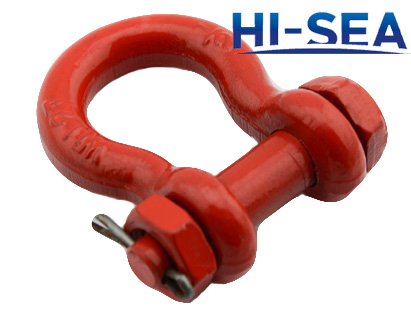

Bolt Type Safety Anchor Shackle G2130
[Search Related Products]Bolt Type Safety Anchor Shackle G2130:
Bolt type safety anchor shackles G2130 are neccessary for marine equipment. Our company has stimulated lots of experiences in producing this product. And we also have a professional sales team and they can provide you with the best service. We are looking forward to cooperating with you.
Details:
1. Model: Bolt Type Safety Anchor Shackle G2130
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 3/16 inch to 2-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Nominal size |
Working load limit |
Dimensions(in) |
Weight each(lbs) |
||||||||
in |
tons |
A |
B |
C |
D |
E |
F |
H |
L |
N |
G2130 |
3/16 |
1/3 |
0.38 |
0.25 |
0.88 |
0.19 |
0.6 |
0.56 |
1.47 |
0.98 |
0.19 |
0.06 |
1/4 |
1/2 |
0.47 |
0.31 |
1.13 |
0.25 |
0.78 |
0.61 |
1.84 |
1.28 |
0.25 |
0.11 |
5/16 |
3/4 |
0.53 |
0.38 |
1.22 |
0.31 |
0.84 |
0.75 |
2.09 |
1.47 |
0.31 |
0.22 |
3/8 |
1 |
0.66 |
0.44 |
1.44 |
0.38 |
1.03 |
0.91 |
2.49 |
1.78 |
0.38 |
0.33 |
7/16 |
1-1/2 |
0.75 |
0.5 |
1.69 |
0.44 |
1.16 |
1.06 |
2.91 |
2.03 |
0.44 |
0.49 |
1/2 |
2 |
0.81 |
0.64 |
1.88 |
0.5 |
1.31 |
1.19 |
3.28 |
2.31 |
0.5 |
0.79 |
5/8 |
3-1/4 |
1.06 |
0.77 |
2.38 |
0.63 |
1.69 |
1.5 |
4.19 |
2.94 |
0.69 |
1.68 |
3/4 |
4-3/4 |
1.25 |
0.89 |
2.81 |
0.75 |
2 |
1.81 |
4.97 |
3.5 |
0.81 |
2.72 |
7/8 |
6-1/2 |
1.44 |
1.02 |
3.31 |
0.88 |
2.28 |
2.09 |
5.83 |
4.03 |
0.97 |
3.95 |
1 |
8-1/2 |
1.69 |
1.15 |
3.75 |
1 |
2.69 |
2.38 |
6.56 |
4.69 |
1.06 |
5.66 |
1-1/8 |
9-1/2 |
1.81 |
1.25 |
4.25 |
1.13 |
2.91 |
2.69 |
7.47 |
5.16 |
1.25 |
8.27 |
1-1/4 |
12 |
2.03 |
1.4 |
4.69 |
1.29 |
3.25 |
3 |
8.25 |
5.75 |
1.38 |
11.71 |
1-3/8 |
13-1/2 |
2.25 |
1.53 |
5.25 |
1.42 |
3.63 |
3.31 |
9.16 |
6.38 |
1.5 |
15.83 |
1-1/2 |
17 |
2.38 |
1.66 |
5.75 |
1.53 |
3.88 |
3.63 |
10 |
6.88 |
1.62 |
19 |
1-3/4 |
25 |
2.88 |
2.04 |
7 |
1.84 |
5 |
4.19 |
12.34 |
8.8 |
2.25 |
33.91 |
2 |
35 |
3.25 |
2.3 |
7.75 |
2.08 |
5.75 |
4.81 |
13.68 |
10.15 |
2.4 |
52.25 |
2-1/2 |
55 |
4.13 |
2.8 |
10.5 |
2.71 |
7.25 |
5.69 |
17.9 |
12.75 |
3.13 |
98.25 |
