Wide Body Shackle

Wide Body Shackle:

Wide body shackles are very important for rigging systems. Our company has specialized in producing this product for many years and all sizes are available. The price is also very competitive. If you are interested in our products, welcome to contact with us.

Details:

1. Model: Wide Body Shackle
2. Material: Alloy steel
3. Usage: Lifting purpose
4. Surface Treatment: Electric galvanized, hot dipped galvanized, self-colored
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

WLL

A

B

C

D

E

F

KG

metric tonnes

30T

40

42

65

165

127

79

11

40T

45

51

80

200

140

97

20

55T

55

57

85

240

160

100

30

75T

70

70

105

290

186

120

50

125T

85

80

130

365

220

150

92

150T

89

95

140

390

250

170

126

200T

100

105

150

480

276

205

184

250T

110

120

170

540

300

240

270

300T

122

134

185

600

350

265

375

400T

145

160

220

575

370

320

577

500T

160

180

250

680

450

340

760

600T

170

200

275

740

490

370

988

700T

190

215

300

750

540

400

1140

800T

200

230

325

850

554

420

1415

900T

220

255

350

850

584

440

1806

1000T

240

270

380

850

614

460

2396

1250T

260

300

430

930

644

530

3120

1500T

280

320

460

950

680

560

3673

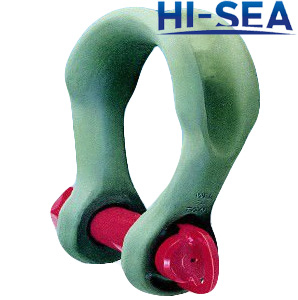

Photo:

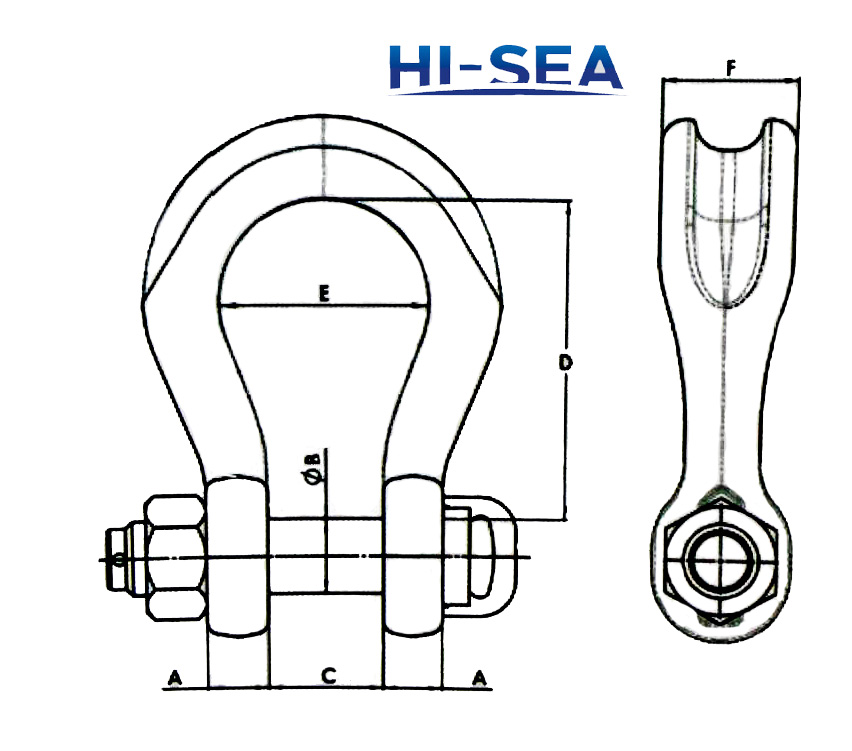

Structure:

Shackles

Wide Body Shackle

Contact with us now

WLL	A	B	C	D	E	F	KG
metric tonnes	A	B	C	D	E	F	KG
30T	40	42	65	165	127	79	11
40T	45	51	80	200	140	97	20
55T	55	57	85	240	160	100	30
75T	70	70	105	290	186	120	50
125T	85	80	130	365	220	150	92
150T	89	95	140	390	250	170	126
200T	100	105	150	480	276	205	184
250T	110	120	170	540	300	240	270
300T	122	134	185	600	350	265	375
400T	145	160	220	575	370	320	577
500T	160	180	250	680	450	340	760
600T	170	200	275	740	490	370	988
700T	190	215	300	750	540	400	1140
800T	200	230	325	850	554	420	1415
900T	220	255	350	850	584	440	1806
1000T	240	270	380	850	614	460	2396
1250T	260	300	430	930	644	530	3120
1500T	280	320	460	950	680	560	3673
