European Type Dee Shackle

European Type Dee Shackle:

European type dee shackles are widely used in rigging systems. Our company has produced this product for many years and we also co-operate with other excellent factories, so the price is very competitive. In addition, our professional sales team will provide you with the best service. We are looking forward to making business relationship with you.

Details:

1. Type: European type
2. Material: Carbon steel, Alloy steel
3. Usage: Marine hardware
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

SWL	D	d	a	c	b	Weight per 100 pce
kg	mm	mm	mm	mm	mm	kg
5	5	10	10	19	11	1.9
6	6	13	13	25	14	3.4
8	8	16	16	32	18	7
10	10	19	19	38	20	13
12	12	25	25	51	26	24
16	16	32	32	64	33	50
20	20	38	38	76	40	80
22	22	44	44	89	50	130
25	25	51	51	100	57	200
28	28	57	57	115	68	300
32	32	64	64	127	73	430
38	38	76	76	152	85	675
45	45	90	90	180	96	1250
50	50	102	102	200	108	1750

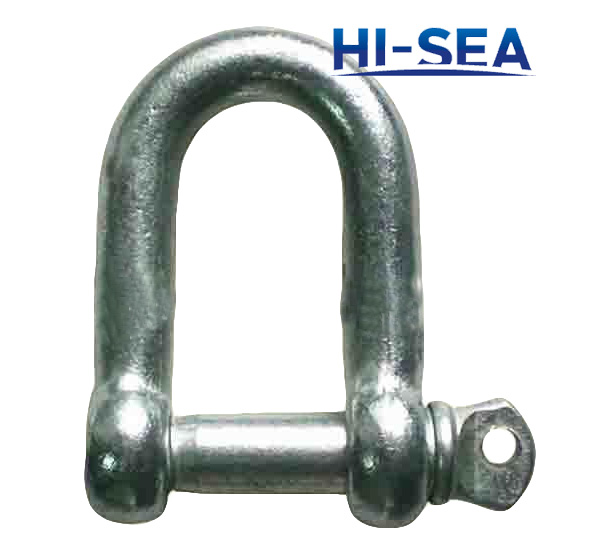

Photo:

European Type Dee Shackle

Electric Galvanized European Type Large Dee Shackle

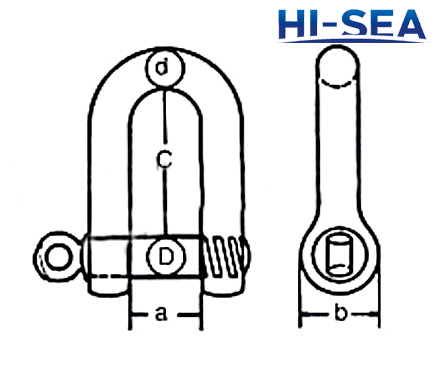

Structure:

European Type Dee Shackle
