DIN82101 Shackles:
DIN82101 shackles are neccessary for marine equipment. Our company has stimulated lots of experiences in producing this product. And we also have a professional sales team and they can offer you the best service. We are looking forward to cooperating with you.
Details:
1. Model: DIN82101 Shackle2. Material: High carbon steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, drop forged
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size | W.L.L | Body dia | I.L. | N.W. |
mm | ton | mm | mm | kg |
5 | 0.1 | 4 | 18 | 0.013 |
6 | 0.16 | 5 | 21 | 0.024 |
8 | 0.25 | 7 | 28 | 0.045 |
10 | 0.4 | 8 | 35 | 0.09 |
12 | 0.6 | 10 | 42 | 0.17 |
16 | 1 | 13 | 57 | 0.36 |
20 | 1.6 | 17 | 71 | 0.75 |
22 | 2 | 19 | 78 | 1 |
24 | 2.5 | 21 | 85 | 1.32 |
27 | 3 | 24 | 97 | 1.85 |
30 | 4 | 27 | 106 | 2.5 |
36 | 5 | 30 | 129 | 4 |
39 | 6 | 34 | 139 | 5.4 |
Photo:

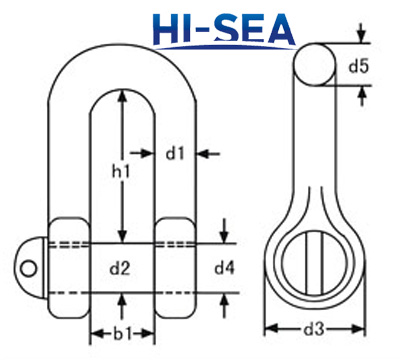

Structure:
