Stainless Steel Large Bow Shackle

Stainless Steel Large Bow Shackle:

Stainless steel large bow shackles are widely used in marine equipment. Our company has specialized in producing this product for many years, so the price is very competitive. In addition, our professional sales team will provide you with the best service. Welcome to get in touch with us.

Details:

1. Model: Large Bow Shackle
2. Material: Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 1/2 inch to 3-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Size	WLL	A	B	C	D	E	F	P	Weight
inch	tons	mm	mm	mm	mm	mm	mm	mm	kg/pc
1/2	2	20.6	16	47.8	12.7	33.3	30.2	71.1	0.36
5/8	3.25	26.9	19.1	60.5	16	42.9	38.1	89.7	0.76
3/4	4.75	31.8	22.4	71.4	19.1	50.8	45	103.4	1.23
7/8	6.5	36.6	25.4	84.1	22.4	57.9	53.1	119.6	1.79
1	8.5	42.9	28.7	95.3	25.4	68.3	60.5	134.9	2.57
1-1/8	9.5	46	31.8	108	28.7	73.9	68.3	149.9	3.75
1-1/4	12	51.6	35.1	119.1	31.8	82.6	76.2	165.4	5.31
1-3/8	13.5	57.2	38.1	133.4	35.1	92.2	84.1	183.1	7.18
1-1/2	17	60.5	41.4	140.1	38.1	98.6	92.2	196.3	9.43
1-3/4	25	73.2	50.8	177.8	44.5	127	106.4	229.8	15.38
2	35	82.6	57.2	196.9	50.8	146.1	122.2	264.4	23.7
2-1/2	55	104.9	70	266.7	66.5	184.2	144.5	344.4	44.57
3	85	127	82.6	330.2	76.2	200.2	165.1	419.1	69.35
3-1/2	120	133.4	95.3	371.6	91.9	228.6	203.2	482.6	120.2

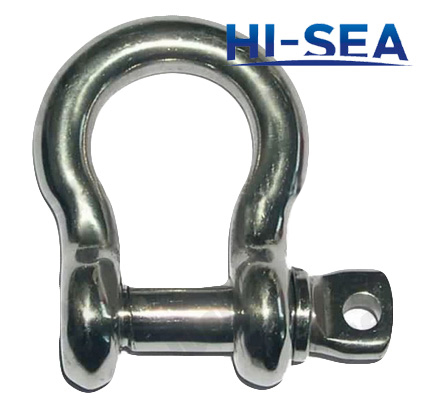

Photo:

European Type Stainless Steel Large Bow Shackle

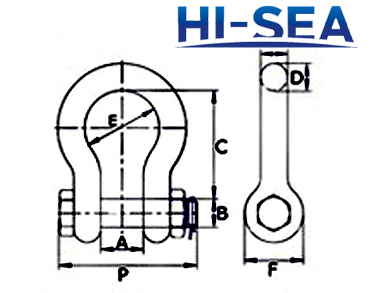

Structure:

Stainless Steel Large Bow Shackle
