BS3032 Dee Shackle
[Search Related Products]BS3032 Dee Shackle:
BS3032 dee shackles are widely used in maring hardware. Our company has been specialized in producing this product for several years and we also co-operate with other excellent fatories, so the price is very competitive. If you are interested in our products, welcome to contact with us.
Details:
1. Model: BS3032 Dee Shackle2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 1/4 inch to 1-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size(A) |
B |
C |
D |
SWL |
in |
in |
mm |
mm |
tons |
1/4 |
3/8 |
25 |
13 |
0.25 |
3/8 |
1/2 |
37 |
20 |
0.5 |
1/2 |
5/8 |
54 |
28 |
0.75 |
5/8 |
3/4 |
63 |
32 |
1.5 |
3/4 |
7/8 |
73 |
38 |
2 |
7/8 |
1 |
82 |
44 |
3 |
1 |
1-1/8 |
95 |
51 |
3.75 |
1-1/8 |
1-1/4 |
104 |
54 |
5 |
1-1/4 |
1-3/8 |
114 |
60 |
6 |
1-3/8 |
1-1/2 |
127 |
66 |
7 |
1-1/2 |
1-3/4 |
137 |
70 |
9.5 |

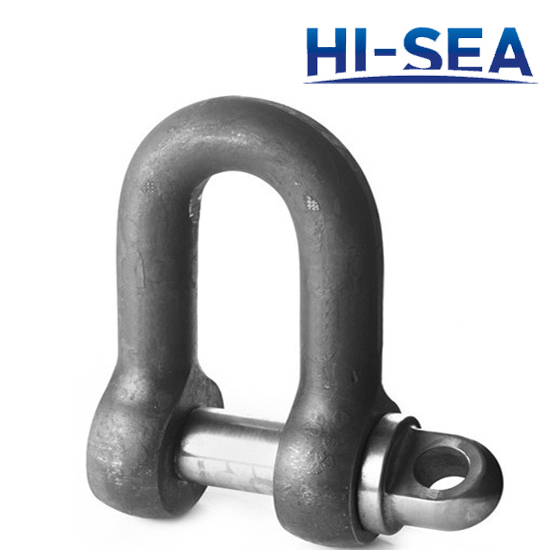

Photo:
BS3032 Large Dee Shackle

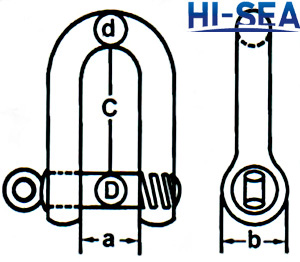

Structure:
