Galvanized Drop Forged Chain Shackle
Galvanized drop forged chain shackle are very common and most other shackle types are a variation of the D-shackle. The small loop can take high loads primarily in line. Side and racking loads may twist or bend a D-shackle.
Details:
1. Model: Galvanized drop forged chain shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 2inch
6. Packing:Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Nominal size (in) |
W.L.L (tons) |
Dimensions (in) |
Weight each (lbs) |
|||||||||||
A |
B |
C |
D |
E |
F |
G |
K |
L |
M |
N |
G-210 |
G-215 |
||
S-210 |
S-215 |
|||||||||||||
1/4 |
1/2 |
0.47 |
0.31 |
0.25 |
0.25 |
0.97 |
0.61 |
0.88 |
1.59 |
0.19 |
1.38 |
1.34 |
0.11 |
0.1 |
5/16 |
3/4 |
0.53 |
0.38 |
0.31 |
0.31 |
1.16 |
0.75 |
1.03 |
1.91 |
0.22 |
1.66 |
1.59 |
0.17 |
0.18 |
3/8 |
1 |
0.66 |
0.44 |
0.38 |
0.38 |
1.41 |
0.91 |
1.25 |
2.3 |
0.25 |
2.03 |
1.86 |
0.24 |
0.25 |
7/16 |
11/2 |
0.75 |
0.5 |
0.44 |
0.44 |
1.63 |
1.06 |
1.44 |
2.66 |
0.31 |
2.38 |
2.13 |
0.4 |
0.38 |
1/2 |
2 |
0.81 |
0.63 |
0.5 |
0.5 |
1.81 |
1.19 |
1.63 |
3.03 |
0.38 |
2.69 |
2.38 |
0.59 |
0.5 |
5/8 |
31/4 |
1.06 |
0.75 |
0.62 |
0.63 |
2.31 |
1.5 |
2 |
3.75 |
0.44 |
3.34 |
2.91 |
1.21 |
1.21 |
3/4 |
43/4 |
1.25 |
0.88 |
0.81 |
0.75 |
2.75 |
1.81 |
2.38 |
4.53 |
0.5 |
3.97 |
3.44 |
2.25 |
2 |
7/8 |
61/2 |
1.44 |
1 |
0.97 |
0.88 |
3.19 |
2.09 |
2.81 |
5.33 |
0.5 |
4.5 |
3.81 |
3.16 |
3.28 |
1 |
81/2 |
1.69 |
1.13 |
1 |
1 |
3.69 |
2.38 |
3.19 |
5.94 |
0.56 |
5.07 |
4.53 |
4.75 |
4.75 |
1 1/8 |
91/2 |
1.81 |
1.25 |
1.25 |
1.13 |
4.06 |
2.69 |
3.58 |
6.78 |
0.63 |
5.59 |
5.13 |
6.75 |
6.3 |
1 1/4 |
12 |
2.03 |
1.38 |
1.38 |
1.25 |
4.53 |
3 |
3.94 |
7.5 |
0.69 |
6.16 |
5.5 |
9.06 |
9 |
1 3/8 |
131/2 |
2.25 |
1.5 |
1.5 |
1.38 |
5 |
3.31 |
4.38 |
8.28 |
0.75 |
6.84 |
6.13 |
11.63 |
12 |
1 1/2 |
17 |
2.38 |
1.62 |
1.62 |
1.5 |
5.38 |
3.62 |
4.81 |
9.06 |
0.81 |
7.35 |
6.5 |
15.95 |
16.15 |
1 3/4 |
25 |
2.88 |
2.12 |
2.12 |
1.75 |
6.38 |
4.19 |
5.75 |
10.97 |
1 |
9.08 |
7.75 |
26.75 |
29.96 |
2 |
35 |
3.25 |
2 |
2 |
2 |
7.25 |
4.81 |
6.75 |
12.28 |
1.22 |
10.34 |
8.75 |
42.31 |
43.25 |

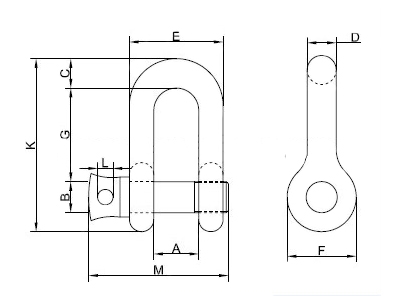

Structure:

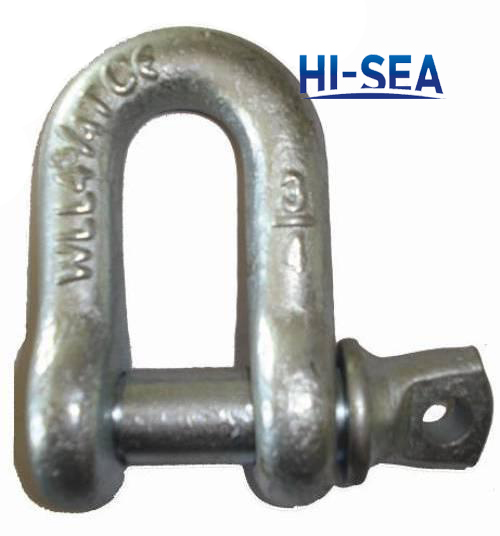

Photo:
