JIS Type Dee Shackle with Safety Pin

JIS Type Dee Shackle with Safety Pin:

JIS type dee shackles with safety pin are very essential in marine hardware. Our company have been specialized in producing this product for several years, so all the sizes are available. The price is very competive. And all of them have required relative society certification. Welcome to contact with us at any time for further information.

Details:

1. Type: JIS type
2. Material: Carbon steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different size as your requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Body diameter

In fact diameter bow

in fact diameter pin

Working load limit

mm

mm

mm

ton

6

5.5

5.5

0.12

8

7.3

7.5

0.23

9

8.5

9

0.3

12

12

12

0.45

16

16

15.5

0.8

19

18.5

19

1

22

21.5

21.5

1.5

25

24

24.5

2

28

26.5

28

2.5

32

30.5

32

3.2

Photo:

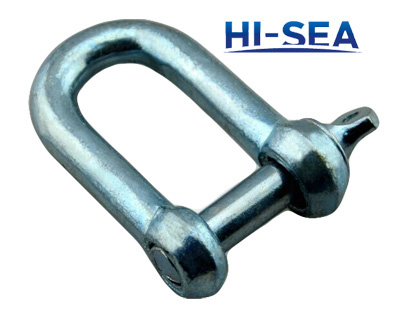

JIS Type Dee Shackle with Safety Pin
