European Type Bow Shackle

European Type Bow Shackle:

European type bow shackles are very essential for marine equipment. Our company has a lot of experiences in producing this product. All sizes are available and the price is competitive. Welcome to contact with us.

Details:

1. Model: European Type Bow Shackle
2. Material: Carbon steel, Alloy steel
3. Usage: Marine hardware
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size	Weight per 100 PCS	WLL
mm	kg	kg
5	1.85	80
6	3.3	100
8	6.8	200
10	12.6	320
12	23	520
16	48.5	800
20	78	1100
22	126	1500
25	194	2100
28	291	3000
32	417	3500
38	655	5000
45	1213	7000
50	1698	8000

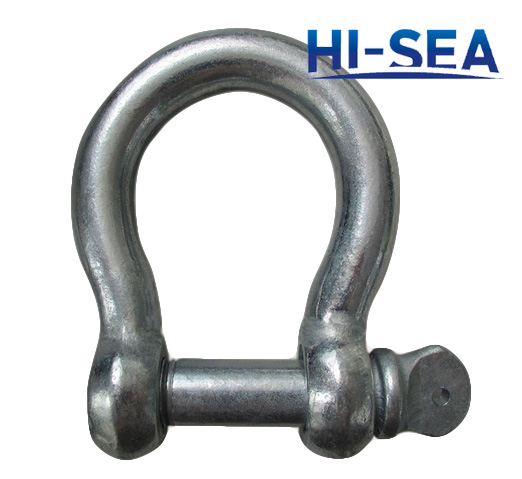

Photo:

European Type Bow Shackle

European Type Large Bow Shackle

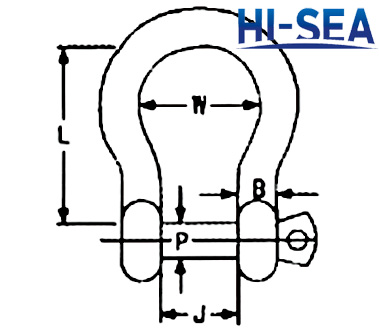

Structure:

European Type Bow Shackle
