Screw Pin JIS Type Bow Shackle

Screw Pin JIS Type Bow Shackle:

Screw pin JIS type bow shackles are very essential in marine hardware. Our company has been speicialized in producing this product for serveral years, so all the sizes are available. The price is very competitive. And all of them have required relative society certification. Welcome to contact with us at any time for further information.

Details:

1. Model: Screw Pin JIS Type Bow Shackle
2. Material: Carbon steel, Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, drop forged
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

SWL

D

d

a

c

r

d

Approx 100

kg

mm

mm

mm

mm

mm

mm

pcs/WT(kg)

80

5

5

10

19

8

11

1.9

100

6

6

13

25

10

14

3.4

200

8

8

16

32

12

18

7

320

10

10

19

38

16

20

13

520

12

12

25

51

19

26

26

800

16

16

32

64

28

33

50

1100

20

20

38

76

33

40

80

1500

22

22

44

89

37

50

130

2100

25

25

51

100

40

57

200

3000

28

28

57

115

47

68

310

3500

32

32

64

127

52

73

430

5000

38

38

76

152

63

85

700

7000

45

45

90

180

75

96

1250

8000

50

50

102

200

78

108

1750

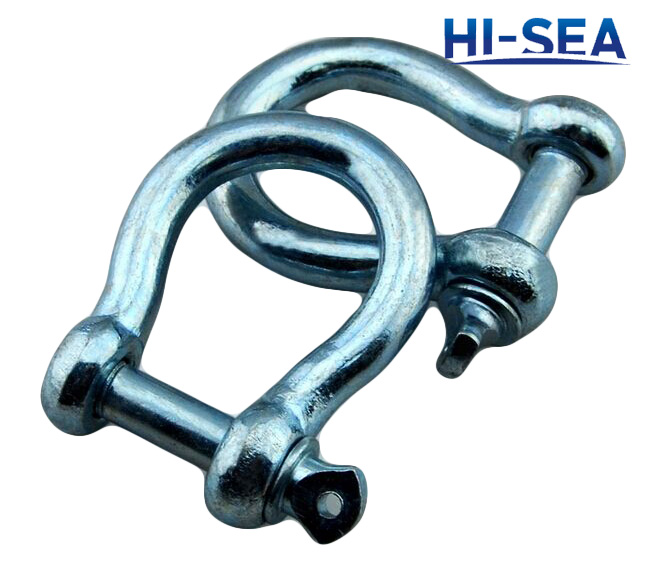

Photo:

Drop Forged Screw Pin JIS Type Bow Shackle

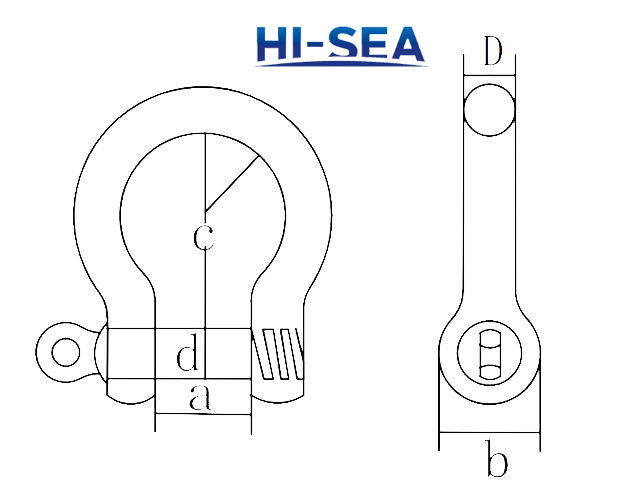

Structure:

Shackles

Screw Pin JIS Type Bow Shackle

Contact with us now

SWL	D	d	a	c	r	d	Approx 100
kg	mm	mm	mm	mm	mm	mm	pcs/WT(kg)
80	5	5	10	19	8	11	1.9
100	6	6	13	25	10	14	3.4
200	8	8	16	32	12	18	7
320	10	10	19	38	16	20	13
520	12	12	25	51	19	26	26
800	16	16	32	64	28	33	50
1100	20	20	38	76	33	40	80
1500	22	22	44	89	37	50	130
2100	25	25	51	100	40	57	200
3000	28	28	57	115	47	68	310
3500	32	32	64	127	52	73	430
5000	38	38	76	152	63	85	700
7000	45	45	90	180	75	96	1250
8000	50	50	102	200	78	108	1750
