Forged Steel Trawling Shackle with Square Head Pin
[Search Related Products]
Forged Steel Trawling Shackle with Square Head Pin:
Forged steel trawling shackle with square head pin is one of our company's important products. All sizes are available. The price is very competitive. Welcome to get in touch with us.
Details:
1. Model: Trawling shackle with square head pin2. Material: Forged steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, self-colored
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size |
Dimensions(mm) |
W.L.L. |
Weight |
|||
mm |
A |
B |
C |
D |
tons |
kgs |
13 |
13 |
15.7 |
22 |
43.7 |
2.00 |
0.35 |
16 |
16 |
19 |
27 |
51.5 |
3.25 |
0.61 |
19 |
19 |
21.7 |
31 |
59.7 |
4.75 |
0.95 |
22 |
22 |
24.7 |
36 |
74.2 |
6.50 |
1.35 |
25 |
25 |
27.7 |
43 |
86.2 |
8.50 |
2.00 |
29 |
29 |
32 |
47 |
90 |
9.50 |
3.08 |
32 |
32 |
35 |
51 |
94 |
12.00 |
4.34 |
35 |
35 |
38 |
57 |
115 |
13.50 |
5.69 |
38 |
38 |
42 |
60 |
127 |
17.00 |
7.10 |
44 |
44 |
51 |
74 |
149 |
25.00 |
12.15 |
51 |
51 |
57 |
83 |
171 |
35.00 |
17.28 |

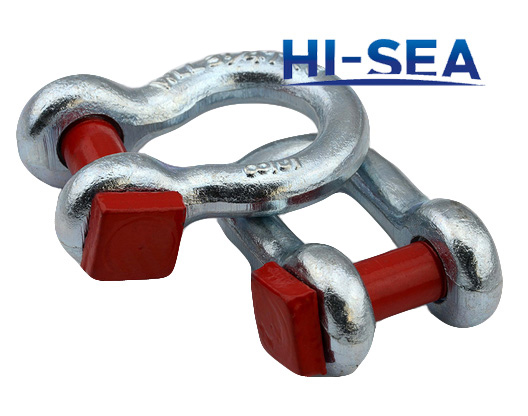

Photo:
Structure:
