CLN Marine Vertical Double-stage Double-outlet Centrifugal Pump

Applications:

CLN Series marine pump is used to deliver fresh water and seawater, widely used for cooling, fire control, chamber loading and other general water drainage. It can be used as the alkali liquid pump and distilling pump in seawater desalination. It can also be used for industrial and urban water supply. The temperature of delivery medium shall not be over 80¡æ.

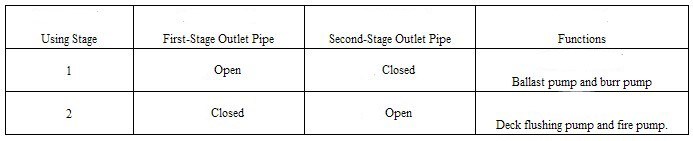

CLN Series marine vertical double-stage double-outlet centrifugal pump has two stage, different with common double-stage pumps. Except the outlet at the second stage, there is also manifold outlet at the first stage. As a kind of general pump, it is most appropriate for ships. Generally, it can be used under the following conditions:

CLN Marine Vertical Double-stage Double-outlet Centrifugal Pump


The pump rotates anticlockwise viewed from the top of motor.


Performance Parameter


1.Performance parameters when power frequency is 50Hz

Type

(50Hz3¦Õ380V) Main technical parameter

Motor type & power

(kW)

Weight

(Kg)

Capacity

(m3/h)

Head

(m)

Speed

(r/min)

NPSHr

(m)

CLN80-340/2A 51/51 29.5/65 1450 2.8 Y180L-4H22 510
CLN80-340/2C 116/58 24/61 1450 3.4 Y180L-4H22 545
CLN80-340/2D 112/54 15/51.5 1450 4.3 Y180M-4H 18.5 520
CLN80-340/2E 141/62 25.5/59 1450 4.2 Y180L-4H22 530
CLN100-380/2A 95/91 36.5/86 1450 4.1 Y225M-4H45 786
CLN100-380/2C 149/95 27.5/77 1450 3.7 Y225M-4H45 781
CLN100-380/2D 141/95 16.5/60.5 1450 3.6 Y225S-4H37 740
CLN100-380/2E 199/99 23.5/69.5 1450 4.2 Y225M-4H45 775
CLN125-380/2A 124/120 33.5/77 1450 4 Y250M-4H55 915
CLN125-380/2C 215/120 23.5/65 1450 4.2 Y225M-4H45 828
CLN125-380/2D 199/108 17/60.5 1450 4.2 Y225S-4H37 795
CLN125-380/2E 257/124 24/68.5 1450 3.5 Y250M-4H55 925
CLN150-380/2A 199/182 33/79 1450 5.1 Y280S-4H75 1082
CLN150-380/2C 348/174 22/71.5 1450 4.9 Y280S-4H75 1078
CLN150-380/2D 265/166 14.5/62 1450 4.2 Y250M-4H55 902
CLN150-380/2E 389/182 22/70 1450 4.6 Y280S-4H75 1080

2.Performance parameters when power frequency is 60Hz

Type

(60Hz 3¦Õ440V)main technical parameter

Motor power

(kW)

Weight

(kg)

Capacity

(m3/h)

Head

(m)

Speed

(r/min)

NPSHr

(m)

CLN80-340/2A 60/62 43/95 1750 3.2 Y225S-4H37 710
CLN80-340/2C 140/70 35/89 1750 4 Y225S-4H37 710
CLN80-340/2D 135/65 22/75 1750 5.3 Y200L-4H30 640
CLN80-340/2E 170/75 37/86 1750 5.2 Y225S-4H37 710
CLN100-380/2A 115/110 53/125 1750 5.1 Y280S-4H75 970
CLN100-380/2C 180/115 40/112 1750 4.5 Y280S-4H75 970
CLN100-380/2D 170/115 24/88 1750 4.4 Y250M-4H55 885
CLN100-380/2E 240/120 34/101 1750 5.2 Y280S-4H75 970
CLN125-380/2A 150/145 49/112 1750 5 Y280M-4H90 1050
CLN125-380/2C 260/145 34/95 1750 5.2 Y280S-4H75 1010
CLN125-380/2D 240/130 25/88 1750 5.2 Y280S-4H75 1010
CLN125-380/2E 310/150 35/100 1750 4.2 Y280M-4H90 1050
CLN150-380/2A 240/220 48/115 1750 6.6 Y315M-4H132
CLN150-380/2C 420/210 32/104 1750 6.2 Y315M-4H132
CLN150-380/2D 320/200 21/90 1750 6 Y280M-4H90 1130
CLN150-380/2E 470/220 32/102 1750 5.8 Y315S-4H110

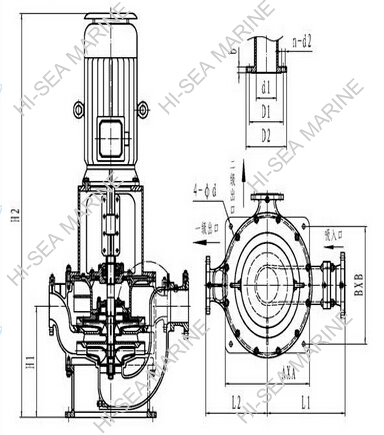

Structure:


CLN Marine Vertical Double-stage Double-outlet Centrifugal Pump

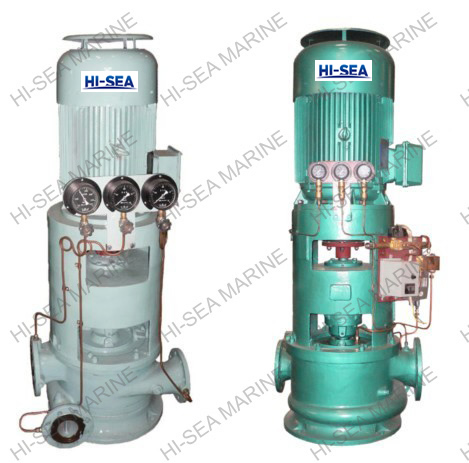

Photo:



CLN Marine Vertical Double-stage Double-outlet Centrifugal Pump
