CWX Marine Centrifugal Vortex Pump
[Search Related Products]
Applications:
CWX Series marine self-priming vortex pump divided into the bracket and no bracket two. The pump is the two level structures of pump cover and the outer diaphragm: a centrifugal wheel -- first stage; the outer clapboard clapboard is arranged between the work and swirl round -- second. The pumps are self-priming function, start before the first pump is filled with water, because the outlet nozzle and the exclusion of the take-over position were higher than that of the pump body, so after stopping the pump, ensure the pump body of water, so it starts again do not need water injection can self sucking work. The pump with mechanical seal, the sealing performance is good. The pump has stable work, long life advantages. Applicable to ships, pumping water device washing and hygiene of fresh and salt water (T£¼85¡æ).
Model Explanation
for example 1.5CWX-4A
1.5¡ªInlet and outlet diameter 1.5 inch
C¡ªMarine pump
WX¡ªCentrifugal vortex pump
4¡ªInteger of specific speed by 10
A¡ªWith bracket type (without A says straight connection type)
Main Technical Parameter
Series Name | CWX |
Product Name | Marine horizontal self-priming centrifugal vortex pump |
Product Model | HS-CWX01 |
Feature | Self-priming marine centrifugal pumps of small volumn,low weight and high function, easily fixed and used. |
Capacity | 3 m3/h, 6.5m3/h, 10m3/h |
Head | 35 m, 40m |
Speed | 2900 /3450 r/min |
Motor power | 2.2kw, 3kw, 4kw |
Application |
Supplied for marine in pumping fresh and sea water for drinking,washing and for sanitation. |
Tempreture | Max.85¡æ |
Certification | CCS, BV |
Performance Parameter
1. Parameters in case of power supply frequency of 50Hz | ||||||||
Type |
(50Hz 3¦Õ 380V) Main technical parameter |
Motor type & power (kW) |
Weight (Kg) |
Remarks |
||||
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
NPSHr (m) |
Shaft power (kW) |
||||
1.5CWX-2 |
3 |
40 |
2900 |
4 |
2 |
Y90L-2H 2.2 |
45 |
Direct-coupling |
1.5CWX-3 |
6.5 |
35 |
2900 |
4 |
2.3 |
Y100L-2H 3 |
50 |
|
1.5CWX-4 |
10 |
35 |
2900 |
4 |
2.5 |
Y112M-2H 4 |
65 |
|
1.5CWX-2A |
3 |
40 |
2900 |
4 |
2 |
Y90L-2H 2.2 |
63 |
Headstock-mounted |
1.5CWX-3A |
6.5 |
35 |
2900 |
4 |
2.3 |
Y100L-2H 3 |
68 |
|
1.5CWX-4A |
10 |
35 |
2900 |
4 |
2.5 |
Y112M-2H 4 |
84 |
|
2.Parameters in case of power supply frequency of 60Hz | ||||||||
Type |
(60Hz 3¦Õ 440V) Main technical parameter |
Motor type & power (kW) |
Weight (Kg) |
Remarks |
||||
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
NPSHr (m) |
Shaft power (kW) |
||||
1.5CWX1-2 |
3.6 |
57 |
3500 |
4.5 |
3.43 |
Y112M-2H 4 |
65 |
Direct-coupling |
1.5CWX1-3 |
7.8 |
50 |
3500 |
4.5 |
3.95 |
Y132S1-2H 5.5 |
82 |
|
1.5CWX1-4 |
12 |
50 |
3500 |
4.5 |
4.29 |
Y132S1-2H 5.5 |
86 |
|
1.5CWX1-2A |
3.6 |
57 |
3500 |
4.5 |
3.43 |
Y112M-2H 4 |
83 |
Headstock-mounted |
1.5CWX1-3A |
7.8 |
50 |
3500 |
4.5 |
3.95 |
Y132S1-2H 5.5 |
100 |
|
1.5CWX1-4A |
12 |
50 |
3500 |
4.5 |
4.29 |
Y132S1-2H 5.5 |
105 |
Structure:

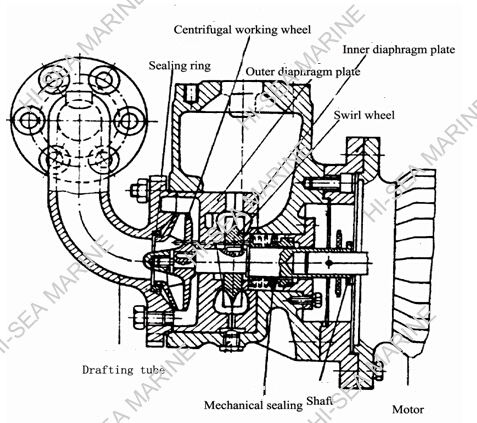

CWX:

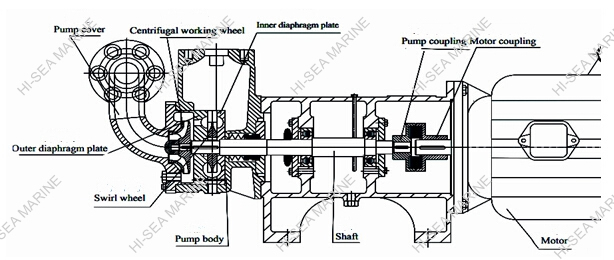

CWX-A:

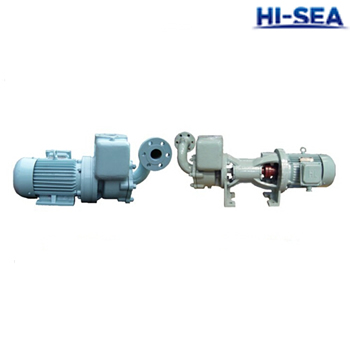

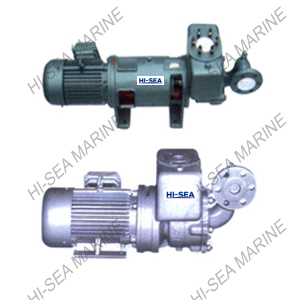

Photo:
