CSG Marine Centrifugal Pump

Applications:

CSG type water pump using IS type centrifugal pump performance parameter, coaxial pump machine has the advantages of simple structure, in strict accordance with international standards of ISO2858and the new national standards for the design of successful energy efficient products is to replace IS type horizontal pump, type DL pump and conventional products centrifugal pump. Basic type, expanding type, A, B, C cutting type and so on more than 400 kinds of specifications. According to the flow medium and temperature difference, the design and manufacture of same parameters of pump hot water (200¡æ), chemical pumps, oil pumps, explosion-proof chemical pump. Purpose: the type of CSG is applicable to transport the fresh water, and liquid similar to the fresh water , the tempreture is required not higher than the 80¡ãC,capable for industry and city water supply, high building water supply, irrigation, fire control,etc.



Model Explanation


CSG)50 ¡ª 160 (I) A(B, C)

CSG ¡ª marine single-stage single-inlet marine vertical centrifugal pump

50 ¡ª Inlet and outlet diameter 50 mm

160 ¡ª Nominal diameter of impeller 160mm

I ¡ª Flow classification

A(B, C) ¡ª Impeller processed with 1£¨2, 3£©cutting



Main Technical Parameter



Series Name CSG
Product Name Vertical centrifugal pump
Product Model HS-CSG01
Features Vertical, the inlet and outlet caliber are same and in the same line£¬small in size
Capacity 1.1-465 m3/h
Head 8.5-160 m
Speed 2900 r/min
Motor power 0.75-160 kw
Application transport the fresh water, and liquid similar to the fresh water
Tempreture max.80¡æ
Certification CCS, BV

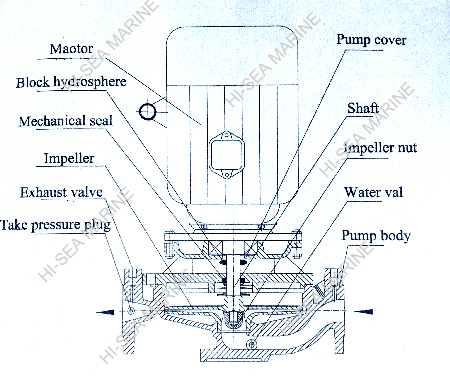

Structure



CSG Marine Centrifugal Pump

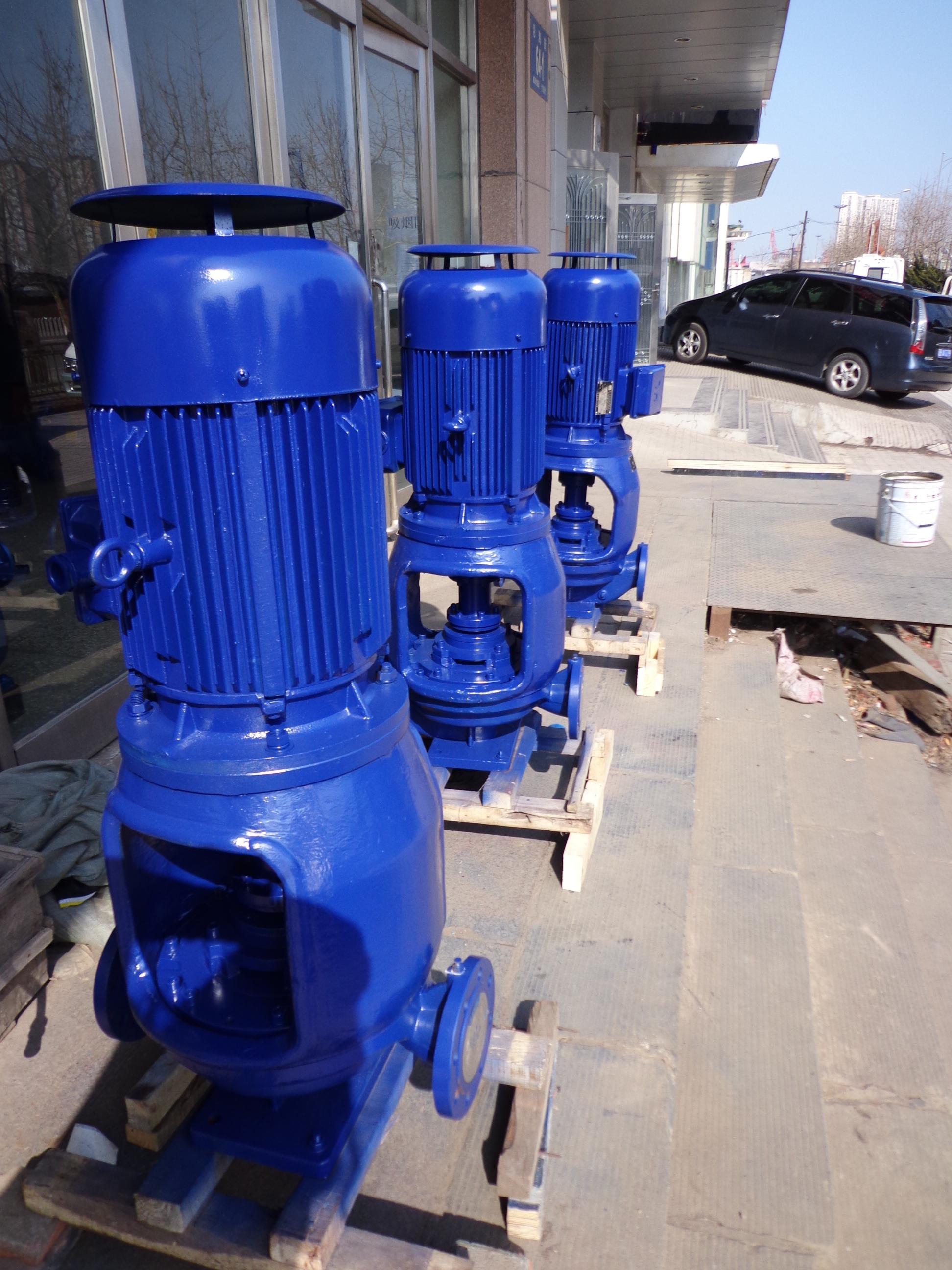

Photo:


CSG Marine Centrifugal Pump


CSG Marine Centrifugal Pump
